Mechanisms of meteorological drought propagation to hydrological drought in the upper Shiyang River Basin, China

doi:10.1007/s40333-025-0106-7

Journal of Arid Land

2025, Vol. 17

Issue (8): 1027-1047 DOI: 10.1007/s40333-025-0106-7

Research article

Mechanisms of meteorological drought propagation to hydrological drought in the upper Shiyang River Basin, China

HUANG Peng¹, GUO Xi¹, YUE Yaojie¹^,²^,^*(

)

¹Key Laboratory of Environmental Change and Natural Disaster, Ministry of Education, Faculty of Geographical Science, Beijing Normal University, Beijing 100875, China
²State Key Laboratory of Earth Surface Processes and Disaster Risk Reduction, Faculty of Geographical Science, Beijing Normal University, Beijing 100875, China

Download:

HTML

PDF(2413KB)
Export: BibTeX | EndNote (RIS)

Abstract

Comprehensively revealing the intensity of drought propagation from meteorological to hydrological drought is crucial for effective drought monitoring and management. However, existing assessments often fail to integrate multiple drought characteristics, resulting in incomplete evaluations. To address this limitation, this study introduced the drought comprehensive propagation intensity (DCPI) index, a systematic tool that quantifies propagation intensity and incorporates five drought characteristic indicators (drought frequency, total duration, maximum duration, coverage, and degree) to assess the comprehensive drought intensity in the upper Shiyang River Basin, China from 1961 to 2023. The results indicated that pre-1980s drought propagation was relatively weak (DCPI<0.964), reflecting stable hydrological homeostasis. After the 1980s, the intensity significantly increased, peaking at 5.530 (rather strong drought) in the 2000s due to human-induced alterations in surface runoff and ecological changes. Spatially, the western tributaries (e.g., the Xida River Watershed) presented stronger hydrological drought intensity, whereas the eastern tributaries (e.g., the Huangyang, Gulang, and Dajing river watersheds) presented higher meteorological drought intensity. The DCPI values decreased from west to east, with near peer-to-peer propagation observed in the Dongda, Huangyang, and Jinta river watersheds, suggesting minimal human interference. A nonlinear relationship between meteorological and hydrological droughts was identified, with severe drought frequency and duration emerging as critical drivers of propagation intensity. Notably, trends of meteorological humidification coexist with hydrological aridification, highlighting systemic challenges for water resource management. The DCPI framework enhances the understanding of drought mechanisms by enabling a structured evaluation of drought impacts, which is essential for developing effective water resource strategies and ecological restoration efforts in arid areas. This study underscores the importance of integrating multi-dimensional drought characteristics to improve prediction accuracy and inform policy decisions.

Key words： drought comprehensive propagation intensity (DCPI) drought comprehensive intensity (DCI) drought frequency drought duration drought coverage standardized precipitation index (SPI) standardized runoff index (SRI)

Received: 10 December 2024 Published: 31 August 2025

Corresponding Authors: ^*YUE Yaojie (E-mail: yjyue@bnu.edu.cn)

About author: First author contact:All authors contributed equally to this work.

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	HUANG Peng
	GUO Xi
	YUE Yaojie

Cite this article:

HUANG Peng, GUO Xi, YUE Yaojie. Mechanisms of meteorological drought propagation to hydrological drought in the upper Shiyang River Basin, China. Journal of Arid Land, 2025, 17(8): 1027-1047.

URL:

http://jal.xjegi.com/10.1007/s40333-025-0106-7 OR http://jal.xjegi.com/Y2025/V17/I8/1027

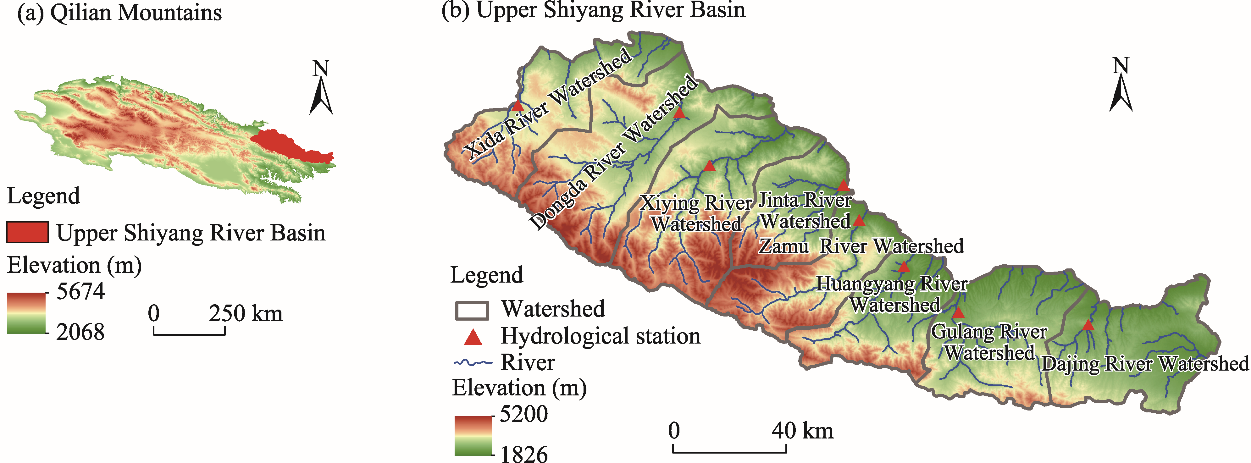

Fig. 1 Location (a) and tributary watershed distribution (b) of the upper Shiyang River Basin in the Qilian Mountains

Table 1 Geographical location of the hydrological stations

Table 2 Standardized precipitation index (SPI) and standardized runoff index (SRI) drought grade

Table 3 Weight of meteorological drought characteristics

Table 4 Weight of hydrological drought characteristics

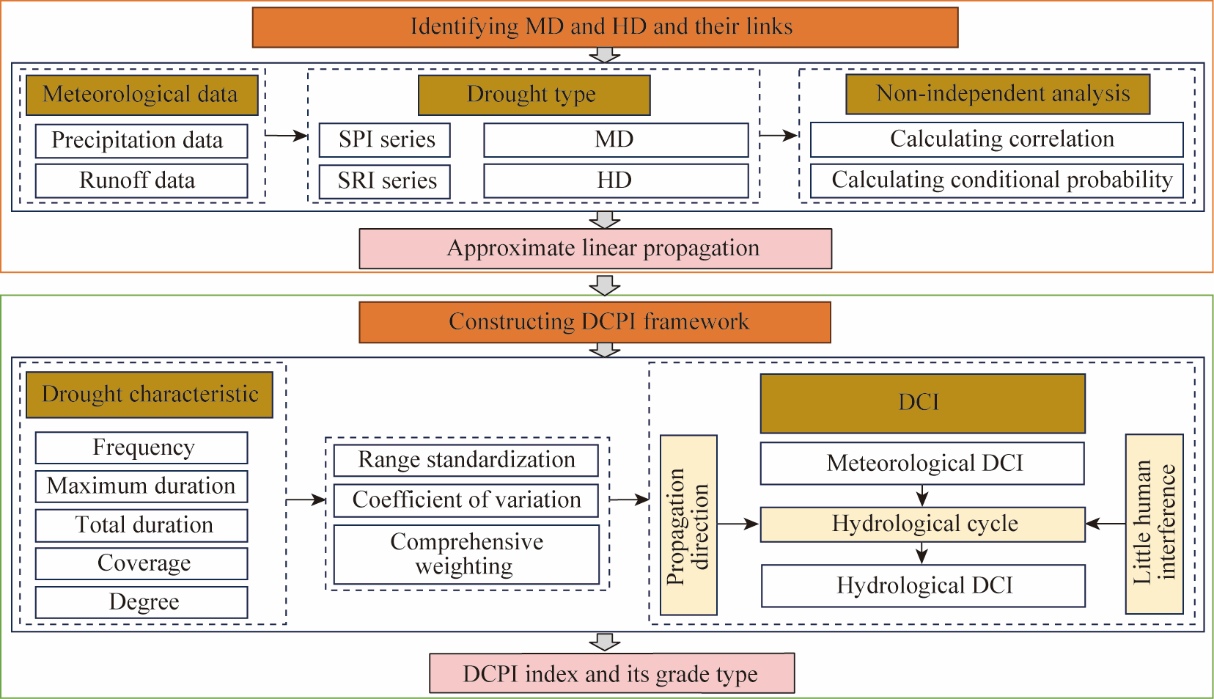

Fig. 2 Framework of the construction of drought comprehensive propagation intensity (DCPI). MD, meteorological drought; HD, hydrological drought; SPI, standardized precipitation index; SRI, standardized runoff index; DCI, drought comprehensive intensity.

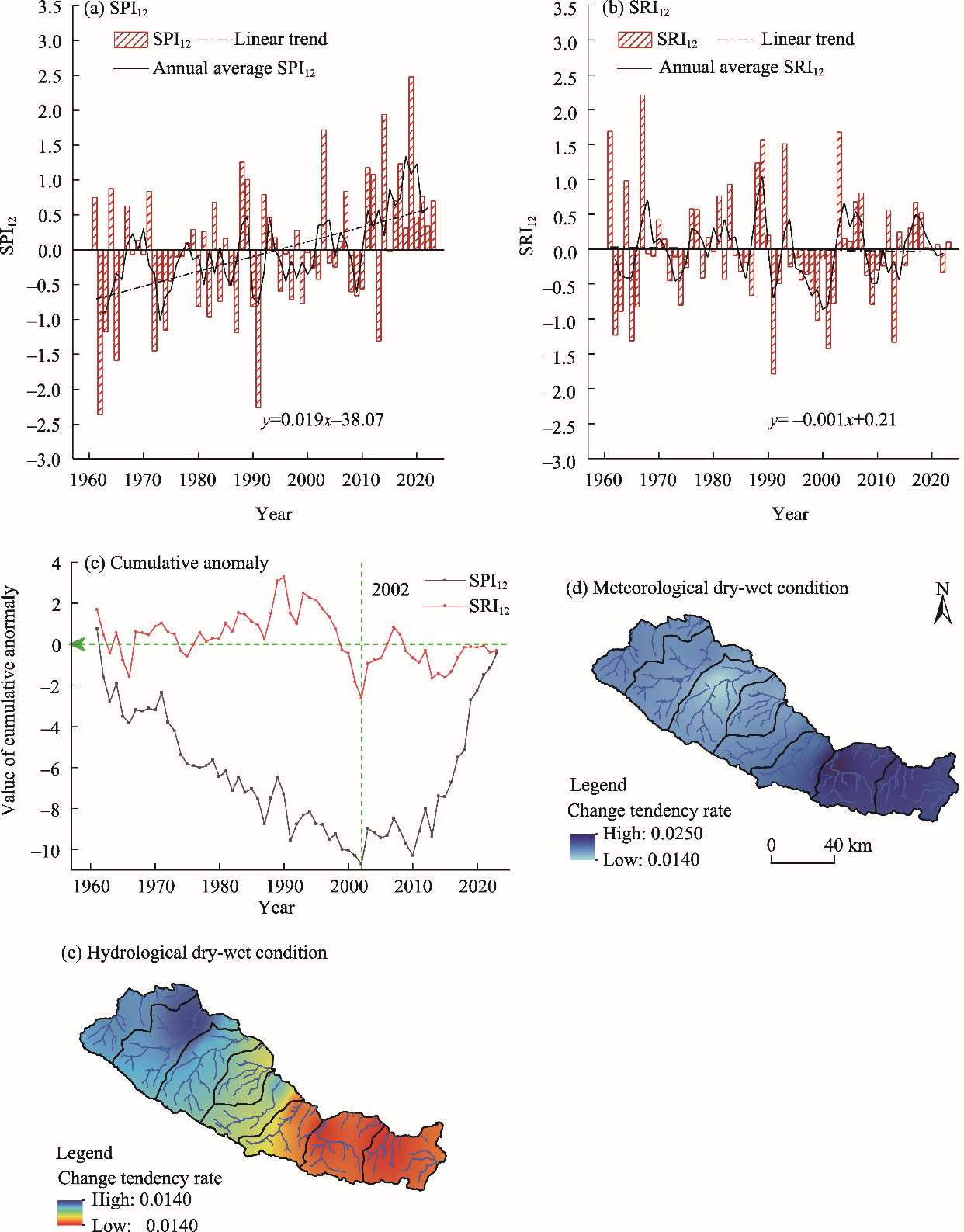

Fig. 3 Spatio-temporal variation in meteorological and hydrological droughts in the upper Shiyang River Basin from 1961 to 2023. (a), trend of SPI at a twelve-month time scale (SPI₁₂); (b), trend of SRI at a twelve-month time scale (SRI₁₂); (c) SPI₁₂ and SRI₁₂ cumulative anomalies; (d), meteorological dry-wet conditions of tributary; (e), hydrological dry-wet conditions of tributary.

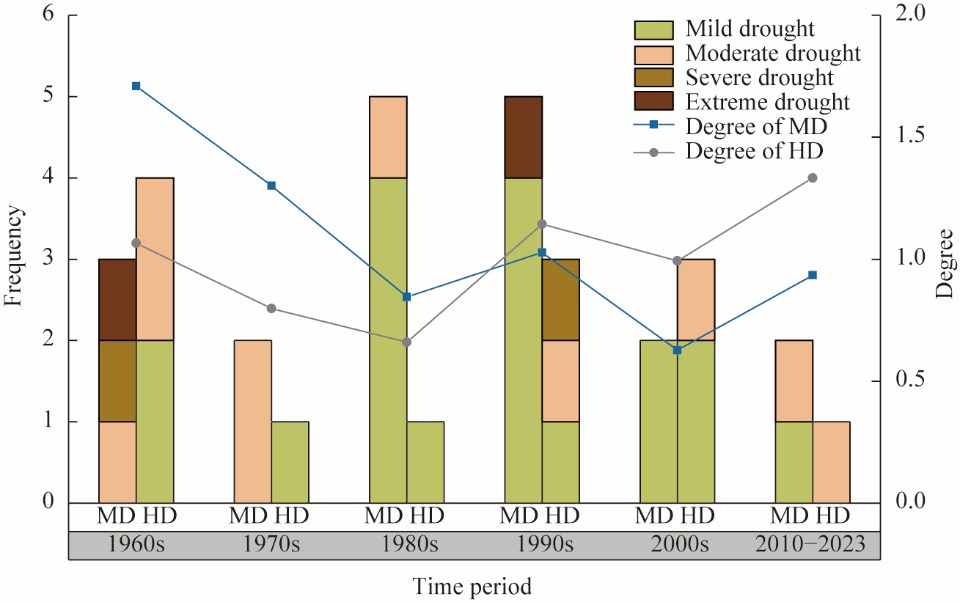

Fig. 4 Frequency and degree of meteorological drought (MD) and hydrological drought (HD) in the upper Shiyang River Basin from 1961 to 2023

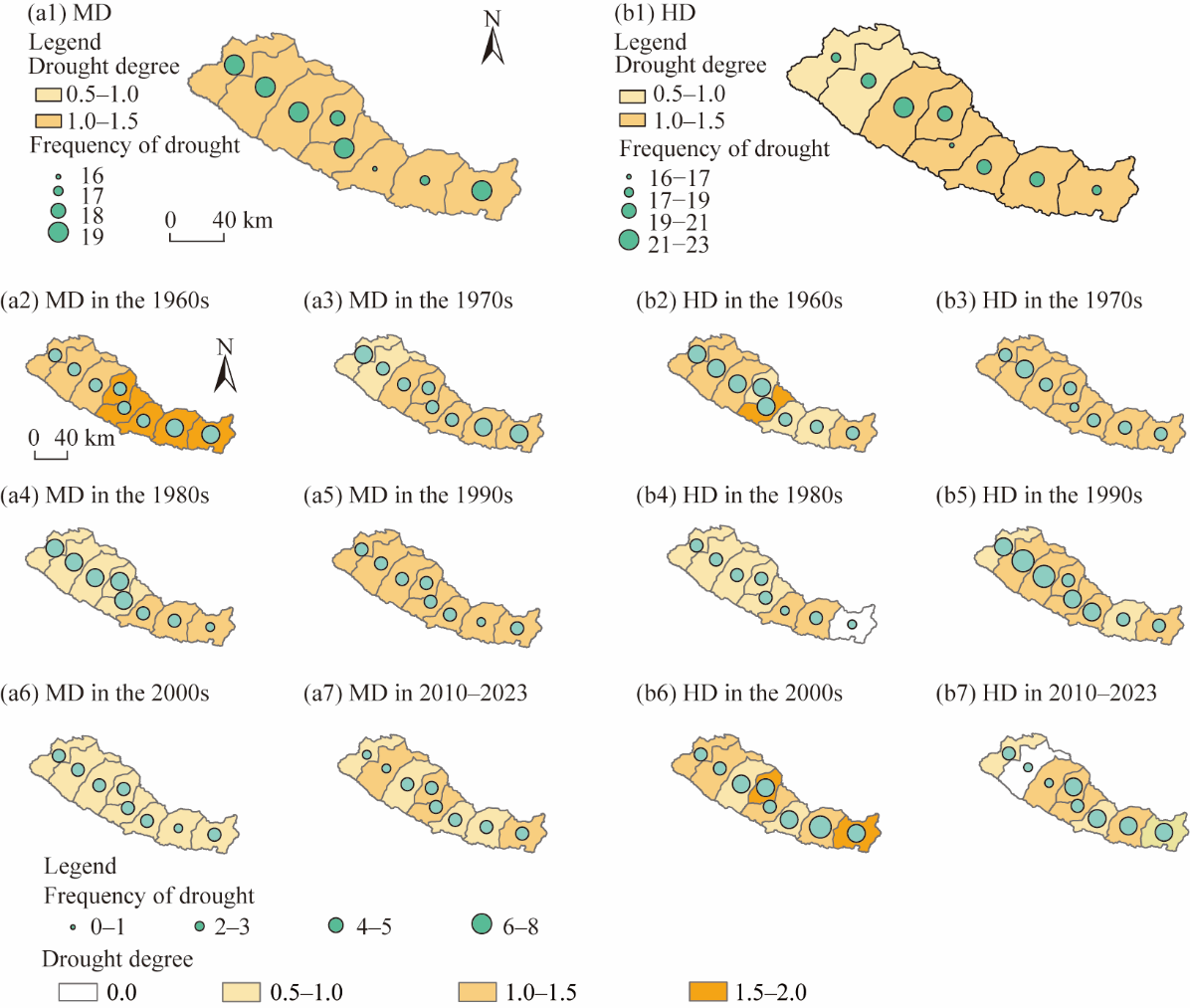

Fig. 5 Frequency and degree of meteorological (a1-a7) and hydrological (b1-b7) droughts in each tributary in the upper Shiyang River Basin from 1961 to 2023

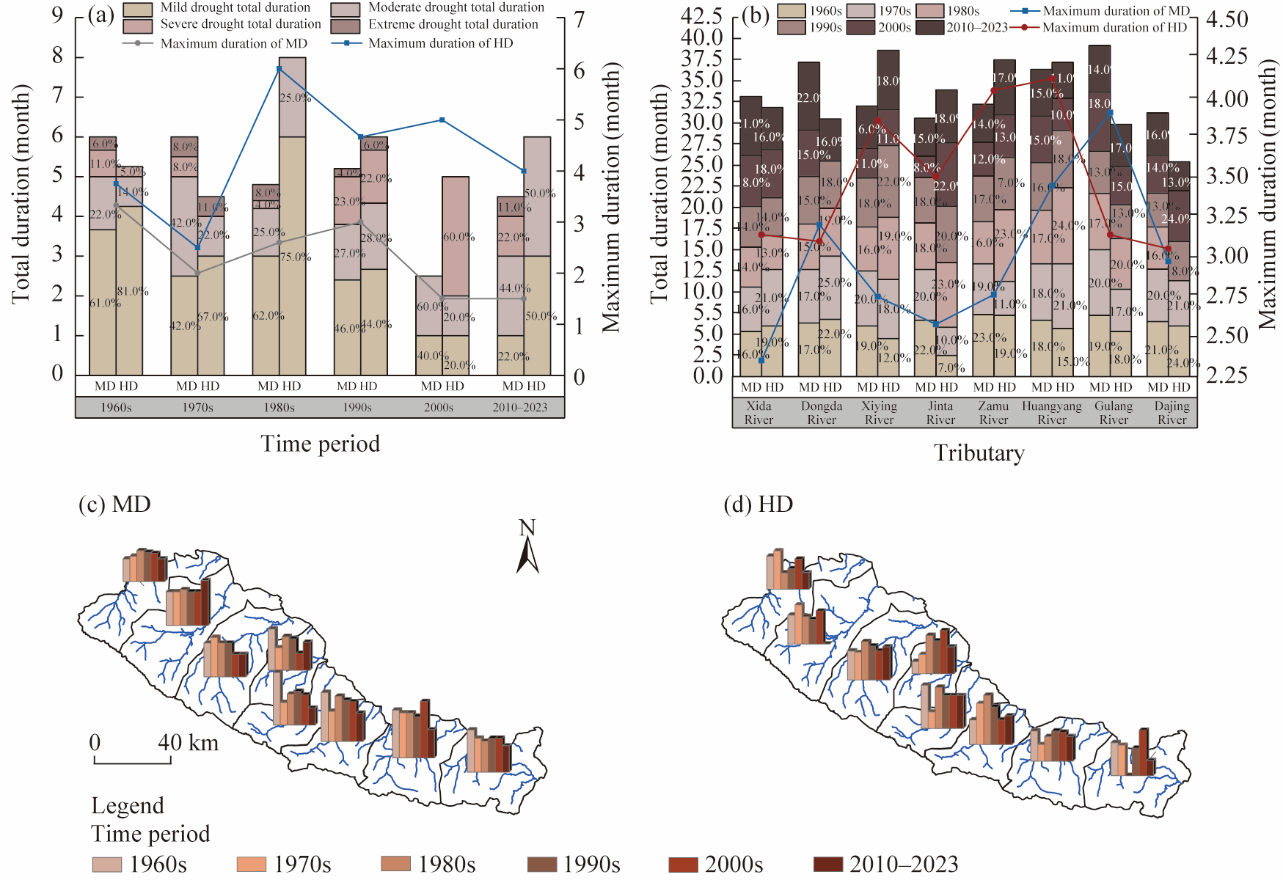

Fig. 6 Spatio-temporal variation in drought duration in the upper Shiyang River Basin from 1961 to 2023. (a), total duration and maximum duration of meteorological and hydrological droughts in the entire upstream region; (b), total duration and maximum duration of meteorological and hydrological droughts in each tributary; (c), spatial distribution of the maximum duration of meteorological drought in each tributary; (d), spatial distribution of the maximum duration of hydrological drought in each tributary.

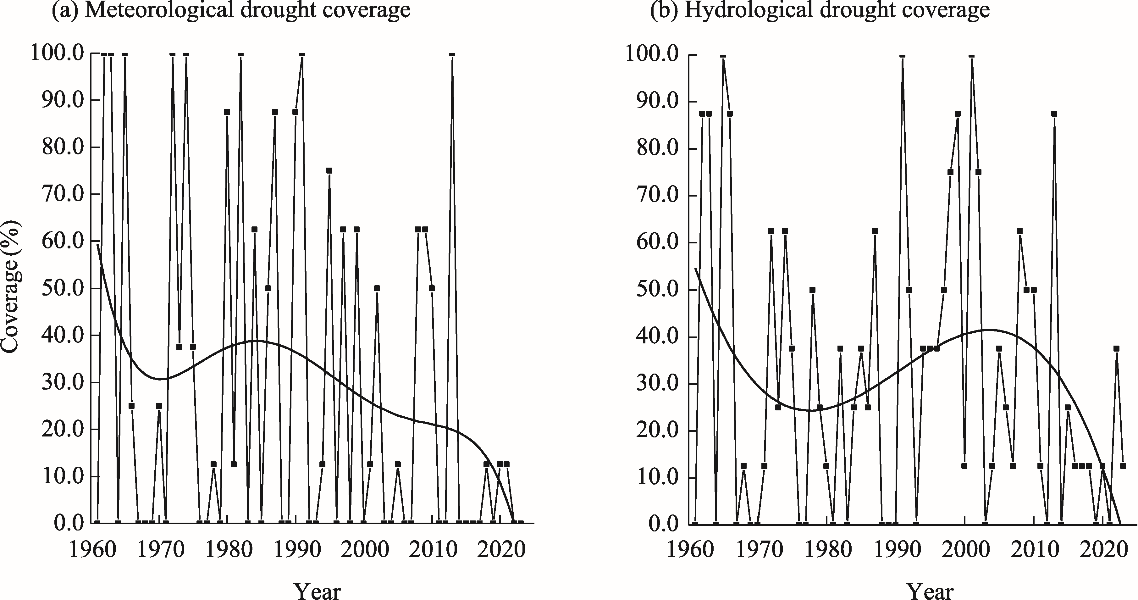

Fig. 7 Temporal variation characteristics of meteorological drought coverage (a) and hydrological drought coverage (b) in the upper Shiyang River Basin from 1961 to 2023. The curve is the trend-fitting line.

Table 5 Correlation coefficient and conditional probability for the upper Shiyang River Basin and each tributary

Table 6 Classification of drought comprehensive propagation intensity (DCPI) in the upper Shiyang River Basin

Table 7 Interdecadal drought comprehensive intensity (DCI) and propagation intensity in the upper Shiyang River Basin

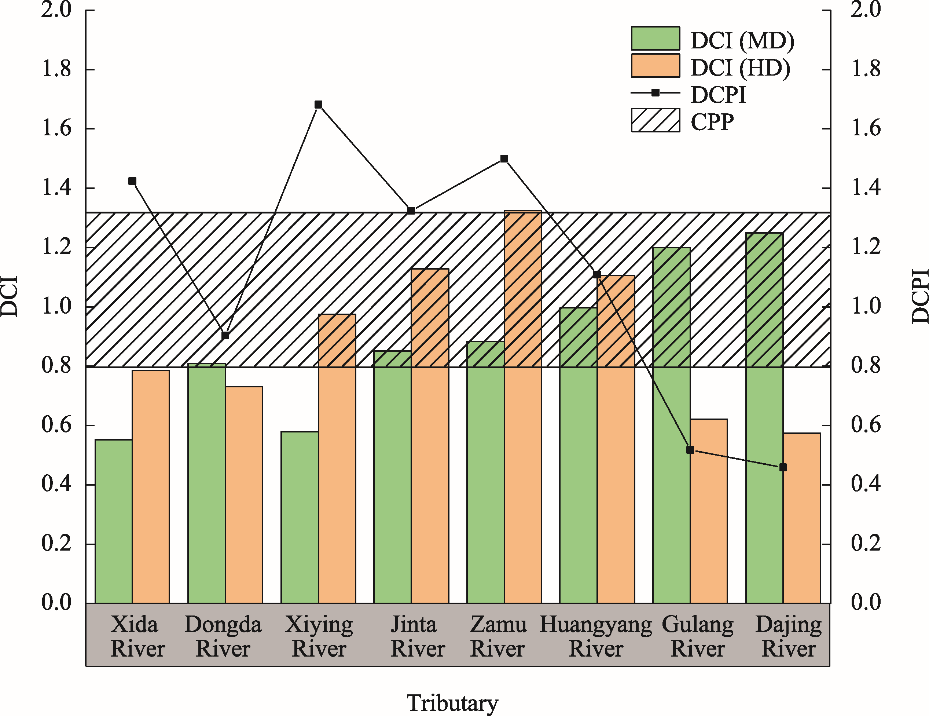

Fig. 8 Drought comprehensive intensity (DCI) and drought comprehensive propagation intensity (DCPI) of each tributary in the upper Shiyang River Basin. CPP, close to peer-to-peer.

Fig. 9 Interdecadal drought propagation of each tributary in the upper Shiyang River Basin from 1961 to 2023. (a), 1960s; (b), 1970s; (c), 1980s; (d), 1990s; (e), 2000s; (f), 2010-2023.


[1]	Adnan S, Ullah K, Li S L, et al. 2017. Comparison of various drought indices to monitor drought status in Pakistan. Climate Dynamics, 51: 1885-1899.

[2]	Amin F, Hossein S, Masoud M, et al. 2022. Influence of drought duration and severity on drought recovery period for different land cover types: evaluation using MODIS-based indices. Ecological Indicators, 141: 109146, doi: 10.1016/j.ecolind.2022.109146.

[3]	Barker L J, Hannaford J, Chiverton A, et al. 2016. From meteorological to hydrological drought using standardised indicators. Hydrology and Earth System Sciences, 20(6): 2483-2505.

[4]	Cai X H, Zhang W Q, Fang X Y, et al. 2022. Identification of regional drought processes in North China using MCI analysis. Land, 10(12): 1390, doi: 10.3390/land10121390.

[5]	Cai X L, Li Q, Fang J G. 2016. Variation characteristics of regional meteorological drought events of Shaanxi Province. Arid Land Geography, 39(2): 294-300. (in Chinese)

[6]	Cavus Y, Stahl K, Aksoy H. 2023. Drought intensity-duration-frequency curves based on deficit in precipitation and streamflow for water resources management. Hydrology and Earth System Sciences, 27(18): 3427-3445.

[7]	China Meteorological Administration. 2017. Grades of Meteorological Drought (GB/T 20481-2017). [2025-05-19]. https://www.cma.gov.cn/zfxxgk/gknr/flfgbz/bz/202209/t20220921_5098974.html. (in Chinese)

[8]	Dai M, Huang S Z, Huang Q, et al. 2020. Assessing agricultural drought risk and its dynamic evolution characteristics. Agricultural Water Management, 231: 106003, doi: 10.1016/j.agwat.2020.106003.

[9]	Das P K, Mohinuddin S K, Midya S K, et al. 2021. Can multiscalar meteorological drought indices detect soil moisture droughts? A study of Indian regions. Hydrological Sciences Journal, 66(9): 1475-1487.

[10]	Deb P, Kiem A S, Willgoose G. 2019. A linked surface water-groundwater modelling approach to more realistically simulate rainfall-runoff non-stationarity in semi-arid regions. Journal of Hydrology, 575: 273-291.

[11]	Duan R, Li Z J, Wang Y, et al. 2023. Characteristics of runoff change in the Shiyang River Basin. Journal of Desert Research, 43(3): 57-68. (in Chinese) doi: 10.7522/j.issn.1000-694X.2022.00142

[12]	Duan W L, Zou S, Christidis N, et al. 2022. Changes in temporal inequality of precipitation extremes over China due to anthropogenic forcings. npj Climate and Atmospheric Science, 5(1): 33, doi: 10.1038/s41612-022-00255-5.

[13]	Elfatih E A, Yeh P A. 1999. On the asymmetric response of aquifer water level to floods and droughts in Illinois. Water Resources Research, 35(4): 1199-1217.

[14]	Fleig A K, Tallaksen L M, Hisdal H, et al. 2006. A global evaluation of streamflow drought characteristics. Hydrology and Earth System Sciences, 10(4): 535-552.

[15]	Gu L, Chen J, Yin J B, et al. 2020. Drought hazard transferability from meteorological to hydrological propagation. Journal of Hydrology, 585: 124761, doi: 10.1016/j.jhydrol.2020.124761.

[16]	Han L Y, Zhang Q, Jia J Y, et al. 2019. Drought severity, frequency, duration and regional differences in China. Journal of Desert Research, 39(5): 1-10. (in Chinese) doi: 10.7522/j.issn.1000-694X.2018.00112

[17]	Haslinger K, Koffler D, Schöner W, et al. 2014. Exploring the link between meteorological drought and streamflow: Effects of climate-catchment interaction. Water Resources Research, 50(3): 2468-2487.

[18]	Hassan I H, Mdemu M V, Shemdoe R S, et al. 2014. Drought pattern along the coastal forest zone of Tanzania. Atmospheric and Climate Sciences, 4(3): 369-384.

[19]	Heudorfer B, Stahl K. 2017. Comparison of different threshold level methods for drought propagation analysis in Germany. Hydrology Research, 48(5): 1311-1326.

[20]	Hu Y N, Duan W L, Chen Y N, et al. 2021. An integrated assessment of runoff dynamics in the Amu Darya River Basin: Confronting climate change and multiple human activities, 1960-2017. Journal of Hydrology, 603: 126905, doi: 10.1016/j.jhydrol.2021.126905.

[21]	Jehanzaib M, Sattar M N, Lee J H, et al. 2020. Investigating effect of climate change on drought propagation from meteorological to hydrological drought using multi-model ensemble projections. Stochastic Environmental Research and Risk Assessment, 34: 7-21.

[22]	Li Q Q, Zhou J J, Zou W Y, et al. 2021. A tributary-comparison method to quantify the human influence on hydrological drought. Journal of Hydrology, 595: 125652, doi: 10.1016/j.jhydrol.2020.125652.

[23]	Li Y P, Chen Y N, Li Z, et al. 2018. Recent recovery of surface wind speed in Northwest China. International Journal of Climatology, 38(12): 4445-4458.

[24]	Lima F T, Souza V M. 2023. A large comparison of normalization methods on time series. Big Data Research, 34: 100407, doi: 10.1016/j.bdr.2023.100407.

[25]	Liu Q, Yang Y T, Liang L Q, et al. 2023. Thresholds for triggering the propagation of meteorological drought to hydrological drought in water-limited regions of China. Science of the Total Environment, 876: 162771, doi: 10.1016/j.scitotenv.2023.162771.

[26]	Liu Y, Zhu Y, Ren L L, et al. 2019. Understanding the spatiotemporal links between meteorological and hydrological droughts from a three-dimensional perspective. Journal of Geophysical Research: Atmospheres, 124(6): 3090-3109.

[27]	Lorenzo-Lacruz J, Vicente-Serrano S M, González-Hidalgo J C, et al. 2013. Hydrological drought response to meteorological drought in the Iberian Peninsula. Climate Research, 58: 117-131.

[28]	Ma F, Yuan X, Liu X Y. 2023. Intensification of drought propagation over the Yangtze River basin under climate warming. International Journal of Climatology, 43(12): 5640-5661.

[29]	Mishra A K, Singh V P. 2010. A review of drought concepts. Journal of Hydrology, 391(1-2): 202-216.

[30]	Mo K C. 2008. Model-based drought indices over the United States. Journal of Hydrometeorology, 9: 1212-1230.

[31]	Rangecroft S, van Loon A F, Maureira H, et al. 2019. An observation-based method to quantify the human influence on hydrological drought: upstream-downstream comparison. Hydrological Sciences Journal, 64(3): 276-287. doi: 10.1080/02626667.2019.1581365

[32]	Raposo V D B, Costa V A F, Rodrigues A F. 2023. A review of recent developments on drought characterization, propagation, and influential factors. Science of the Total Environment, 898: 165550, doi: 10.1016/j.scitotenv.2023.165550.

[33]	Sattar M N, Jehanzaib M, Kim J E, et al. 2020. Application of the hidden Markov Bayesian classifier and propagation concept for probabilistic assessment of meteorological and hydrological droughts in South Korea. Atmosphere, 11(9): 1000, doi: 10.3390/atmos11091000.

[34]	Shao J, Li Y, Song S B. 2014. New computing method for standardized runoff index and its application. Journal of Natural Disasters, 23(6): 79-87. (in Chinese)

[35]	Shin J Y, Kwon H H, Lee J H, et al. 2019. Probabilistic long-term hydrological drought forecast using Bayesian networks and drought propagation. Meteorological Applications, 27(1): e1827, doi: 10.1002/met.1827.

[36]	Shiyang River Basin Administration of the Water Resources Department of Gansu Province. 1962- 2024. Shiyang River Basin Water Resources Bulletin. Gansu: Gansu Culture Press. (in Chinese)

[37]	Shukla S, Wood A W. 2008. Use of a standardized runoff index for characterizing hydrologic drought. Geophysical Research Letters, 35(2): L02405, doi: 10.1029/2007GL032487.

[38]	Spinoni J, Naumann G, Carrao H, et al. 2014. World drought frequency, duration, and severity for 1951-2010. International Journal of Climatology, 34(8): 2792-2804.

[39]	Sun T D, Wang J, Wang C C. 2020. TOPSIS threat assessment based on the coefficient of variation. 2020 Proceedings of the 39^th Chinese Control Conference. Shenyang: Technical Committee on Control Theory, Chinese Association of Automation, 175-179. (in Chinese)

[40]	Tian F, Yang J H, Liu L Z, et al. 2022. Progress of research on the conception, characteristic, and influencing factors of drought propagation from the perspective of geographic sciences. Progress in Geography, 41(1): 173-184. (in Chinese) doi: 10.18306/dlkxjz.2022.01.015

[41]	Tian H Z, Yang T B, Liu Q P. 2014. Climate change and glacier area shrinkage in the Qilian Mountains, China, from 1956 to 2010. Annals of Glaciology, 55(66): 187-197.

[42]	van Loon A F, Rangecroft S, Coxon G, et al. 2019. Using paired catchments to quantify the human influence on hydrological droughts. Hydrology and Earth System Sciences, 23(3): 1725-1739.

[43]	Vicente-Serrano S M, Lópe-Moreno J I. 2005. Hydrological response to different time scales of climatological drought: an evaluation of the Standardized Precipitation Index in a mountainous Mediterranean basin. Hydrology and Earth System Sciences, 9(5): 523-533.

[44]	Wada Y, van Beek L P, Wanders N, et al. 2013. Human water consumption intensifies hydrological drought worldwide. Environmental Research Letters, 8(3): 34014-34036.

[45]	Wang J S, Wang W, Cheng H, et al. 2021. Propagation from meteorological to hydrological drought and its influencing factors in the Huaihe River basin. Water, 13(14): 1985, doi: 10.3390/w13141985.

[46]	Wei W, Shi P J, Zhao J, et al. 2012. Environmental suitability evaluation for human settlements in arid inland river basin—a case study on the Shiyang River basin. Advanced Materials Research, 518-523: 4874-4884.

[47]	Wei W, Zou S, Duan W L, et al. 2023. Spatiotemporal variability in extreme precipitation and associated large-scale climate mechanisms in Central Asia from 1950 to 2019. Journal of Hydrology, 620: 129417, doi: 10.1016/j.jhydrol.2023.129417.

[48]	Wu J F, Liu Z Y, Yao H X, et al. 2018. Impacts of reservoir operations on multi-scale correlations between hydrological drought and meteorological drought. Journal of Hydrology, 563: 726-736.

[49]	Wu J F, Yuan X, Yao H X, et al. 2021. Reservoirs regulate the relationship between hydrological drought recovery water and drought characteristics. Journal of Hydrology, 603: 127127, doi: 10.1016/j.jhydrol.2021.127127.

[50]	Wu Y F, Zhang G X. 2018. Spatio-temporal patterns of meteorological and hydrological drought in the Songhua River area from 1961 to 2010. Scientia Geographica Sinica, 38(10): 1731-1738. (in Chinese) doi: 10.13249/j.cnki.sgs.2018.10.018

[51]	Xu K, Yang D W, Yang H B, et al. 2015. Spatio-temporal variation of drought in China during 1961-2012: A climatic perspective. Journal of Hydrology, 526: 253-264.

[52]	Xu Y, Zhang X, Wang X, et al. 2019. Propagation from meteorological drought to hydrological drought under the impact of human activities: A case study in northern China. Journal of Hydrology, 579: 124-147.

[53]	Yang F, Duan X W, Guo Q K, et al. 2022. The spatiotemporal variations and propagation of droughts in plateau mountains of China. Science of the Total Environment, 805: 150257, doi: 10.1016/j.scitotenv.2021.150257.

[54]	Yang Y, Mcvicar T R, Donohue R J, et al. 2017. Lags in hydrologic recovery following an extreme drought: Assessing the roles of climate and catchment characteristics. Water Resources Research, 53(6): 4821-4837.

[55]	Yao N, Zhao H, Li Y, et al. 2020. National-scale variation and propagation characteristics of meteorological, agricultural, and hydrological droughts in China. Remote Sensing, 12(20): 3407, doi: 10.3390/rs12203407.

[56]	Yildirim I, Aksoy H, Hrachowitz M. 2024. Formative drought rate to quantify propagation from meteorological to hydrological drought. Hydrological Processes, 38(7): e15229, doi: 10.1002/hyp.15229.

[57]	Yuan X, Wang Y M, Ji P, et al. 2023. A global transition to flash droughts under climate change. Science, 380: 187-191. doi: 10.1126/science.abn6301 pmid: 37053316

[58]	Zhang D, Chen P, Zhang Q, et al. 2017. Copula-based probability of concurrent hydrological drought in the Poyang lake-catchment-river system (China) from 1960 to 2013. Journal of Hydrology, 553: 773-784.

[59]	Zhang X, Hao Z C, Singh V P, et al. 2022. Drought propagation under global warming: Characteristics, approaches, processes, and controlling factors. Science of the Total Environment, 838: 156021, doi: 10.1016/j.scitotenv.2022.156021.

[60]	Zhao H Y, Chen X Y, Yang J X, et al. 2022. Comprehensive assessment and variation characteristics of the drought intensity in North China based on EID. Journal of Applied Meteorology and Climatology, 61(3): 297-308.

[61]	Zhou J J, Shi W, Shi P J, et al. 2012. Characteristics of mountainous runoff and its responses to climate change in the upper reaches of Shiyang River Basin during 1956-2009. Journal of Lanzhou University. Natural Science, 48(1): 27-34. (in Chinese)

[62]	Zhou J J, Li Q Q, Wang L Y, et al. 2019. Impact of climate change and land-use on the propagation from meteorological drought to hydrological drought in the eastern Qilian Mountains. Water, 11(8): 1602, doi: 10.3390/w11081602.

[63]	Zhou J J, Xue D X, Yang L T, et al. 2023. Quantify the impacts of climate variability and anthropogenic activities on runoff: With an improved double mass curve method. Journal of Geographical Sciences, 33(11):2237-2256. doi: 10.1007/s11442-023-2174-y

[64]	Zhou Z Q, Shi H Y, Fu Q, et al. 2021. Investigating the propagation from meteorological to hydrological drought by introducing the nonlinear dependence with directed information transfer index. Water Resources Research, 57(8): e2021WR030028, doi: 10.1029/2021WR030028.
