Effects of a combination of biochar and cow manure on soil nutrients and cotton yield in salinized fields

doi:10.1007/s40333-025-0054-2

Journal of Arid Land

2025, Vol. 17

Issue (7): 1014-1026 DOI: 10.1007/s40333-025-0054-2 CSTR: 32276.14.JAL.02500542

Research article

Effects of a combination of biochar and cow manure on soil nutrients and cotton yield in salinized fields

HUANG Cheng¹^,², HOU Shengtong¹^,², WANG Bao¹^,², SONG Yuchuan¹^,², Aikeremu ABULATIJIANG¹^,², MIN Jiuzhou¹^,², SHENG Jiandong¹^,², JIANG Ping'an¹^,², WANG Ze¹^,², CHENG Junhui¹^,²^,^*(

)

¹College of Resources and Environment, Xinjiang Agricultural University, Urumqi 830052, China
²Xinjiang Key Laboratory of Soil and Plant Ecological Processes, Xinjiang Agricultural University, Urumqi 830052, China

Download:

HTML

PDF(2029KB)
Export: BibTeX | EndNote (RIS)

Abstract

Biochar and animal manure application can improve crop yields in salt-affected soil. Previous studies have primarily applied biochar and animal manure either alone or at fixed ratios, while their combined effects with varying combination proportions are still unclear. To address this knowledge gap, we performed a 2-a experiment (2023-2024) in a salinized cotton field in Wensu County of Xinjiang Uygur Autonomous Region of China with the following 6 treatments: control; application of biochar (10 t/hm²) alone (BC100%); application of cow manure (10 t/hm²) alone (CM100%); application of 70% biochar (7 t/hm²) combined with 30% cow manure (3 t/hm²) (BC70%+CM30%); application of 50% biochar (5 t/hm²) combined with 50% cow manure (5 t/hm²) (BC50%+CM50%); and application of 30% biochar (3 t/hm²) combined with 70% cow manure (7 t/hm²) (BC30%+CM70%). By measuring soil pH, electrical conductivity, soil organic matter, available phosphorus, available potassium, and available nitrogen at 0-20 and 20-40 cm depths, as well as yield components and cotton yield in 2023 and 2024, this study revealed that soil nutrients in the 0-20 cm depth were more sensitive to the treatment. Among all the treatments, BC50%+CM50% treatment had the highest value of soil pH (9.63±0.07) but the lowest values of electrical conductivity (161.9±31.8 μS/cm), soil organic matter (1.88±0.27 g/kg), and available potassium (42.72±8.25 mg/kg) in 2024. Moreover, the highest cotton yield (5336.63±467.72 kg/hm²) was also observed under BC50%+CM50% treatment in 2024, which was 1.9 times greater than that under the control treatment. In addition, cotton yield in 2023 was jointly determined by yield components (density and number of cotton bolls) and soil nutrients (available phosphorus and available potassium), but in 2024, cotton yield was only positively related to yield components (density, number of cotton bolls, and single boll weight). Overall, this study highlighted that in salt-affected soil, the combination of biochar and cow manure at a 1:1 ratio is recommended for increasing cotton yield and reducing soil salinity stress.

Key words： biochar animal manure yield components crop yield soil nutrients soil salinity stress salt-affected soil

Received: 18 March 2025 Published: 31 July 2025

Corresponding Authors: ^*CHENG Junhui (E-mail: cjhgraymice@126.com)

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	HUANG Cheng
	HOU Shengtong
	WANG Bao
	SONG Yuchuan
	Aikeremu ABULATIJIANG
	MIN Jiuzhou
	SHENG Jiandong
	JIANG Ping'an
	WANG Ze
	CHENG Junhui

Cite this article:

HUANG Cheng, HOU Shengtong, WANG Bao, SONG Yuchuan, Aikeremu ABULATIJIANG, MIN Jiuzhou, SHENG Jiandong, JIANG Ping'an, WANG Ze, CHENG Junhui. Effects of a combination of biochar and cow manure on soil nutrients and cotton yield in salinized fields. Journal of Arid Land, 2025, 17(7): 1014-1026.

URL:

http://jal.xjegi.com/10.1007/s40333-025-0054-2 OR http://jal.xjegi.com/Y2025/V17/I7/1014

Table 1 Background values of the soil properties

Table 2 Effects of biochar combined with cow manure on soil pH and electrical conductivity (EC)

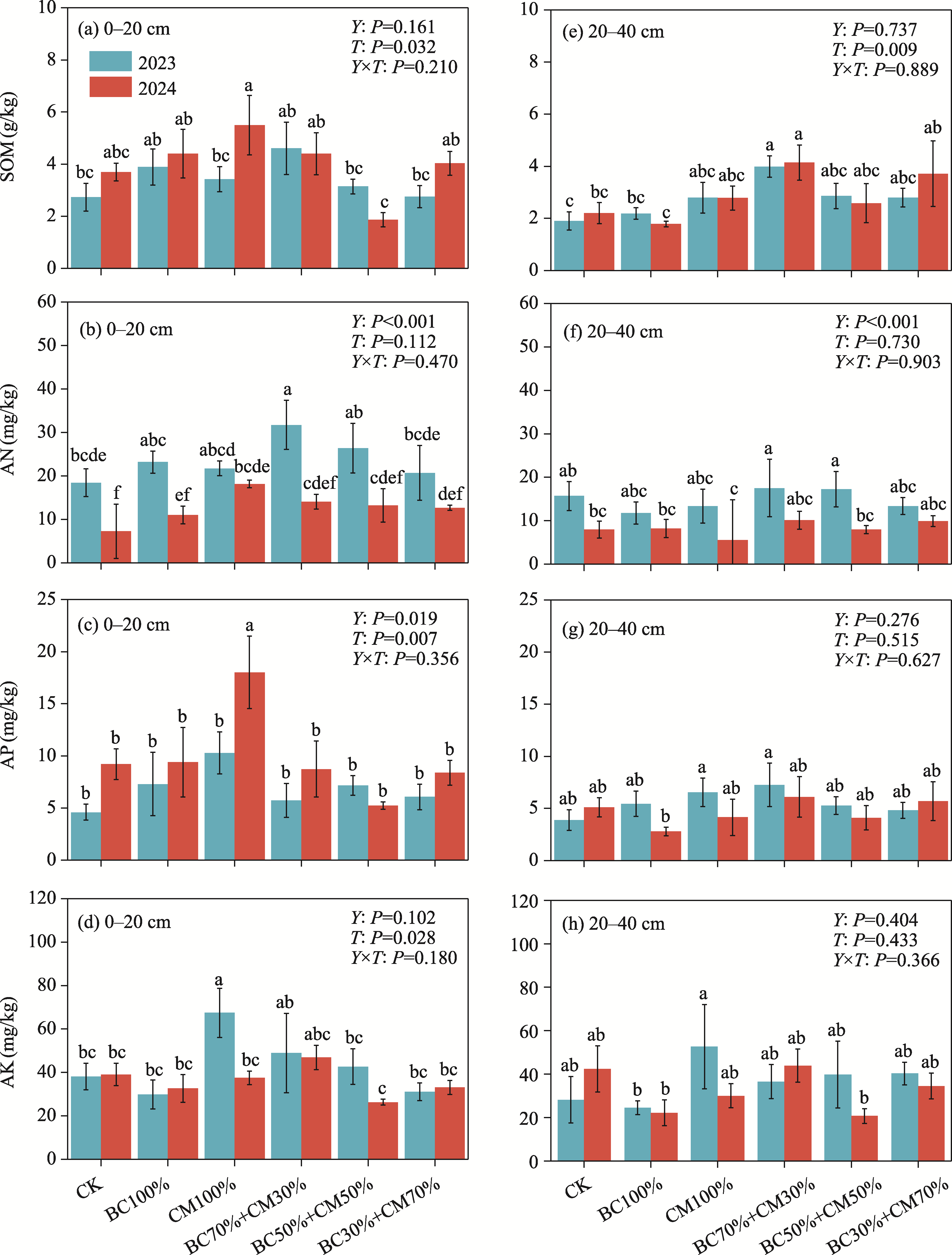

Fig. 1 Variations in soil nutrients in response to biochar combined with cow manure in 0-20 cm (a-d) and 20-40 cm (e-h) soil depths in 2023 and 2024. SOM, soil organic matter; AN, available nitrogen; AP, available phosphorus; AK, available potassium. Y, T, and Y×T represent the main effects of year, treatment, and their interaction effects, respectively. CK, BC100%, CM100%, BC70%+CM30%, BC50%+CM50%, and BC30%+CM70% represent the control, application of biochar (10 t/hm²) alone, application of cow manure (10 t/hm²) alone, application of 70% biochar (7 t/hm²) combined with 30% cow manure (3 t/hm²), application of 50% biochar (5 t/hm²) combined with 50% cow manure (5 t/hm²), and application of 30% biochar (3 t/hm²) combined with 70% cow manure (7 t/hm²), respectively. Bars are standard errors. Different lowercase letters represent significant differences in soil nutrients among treatments and between years at P<0.050 level.

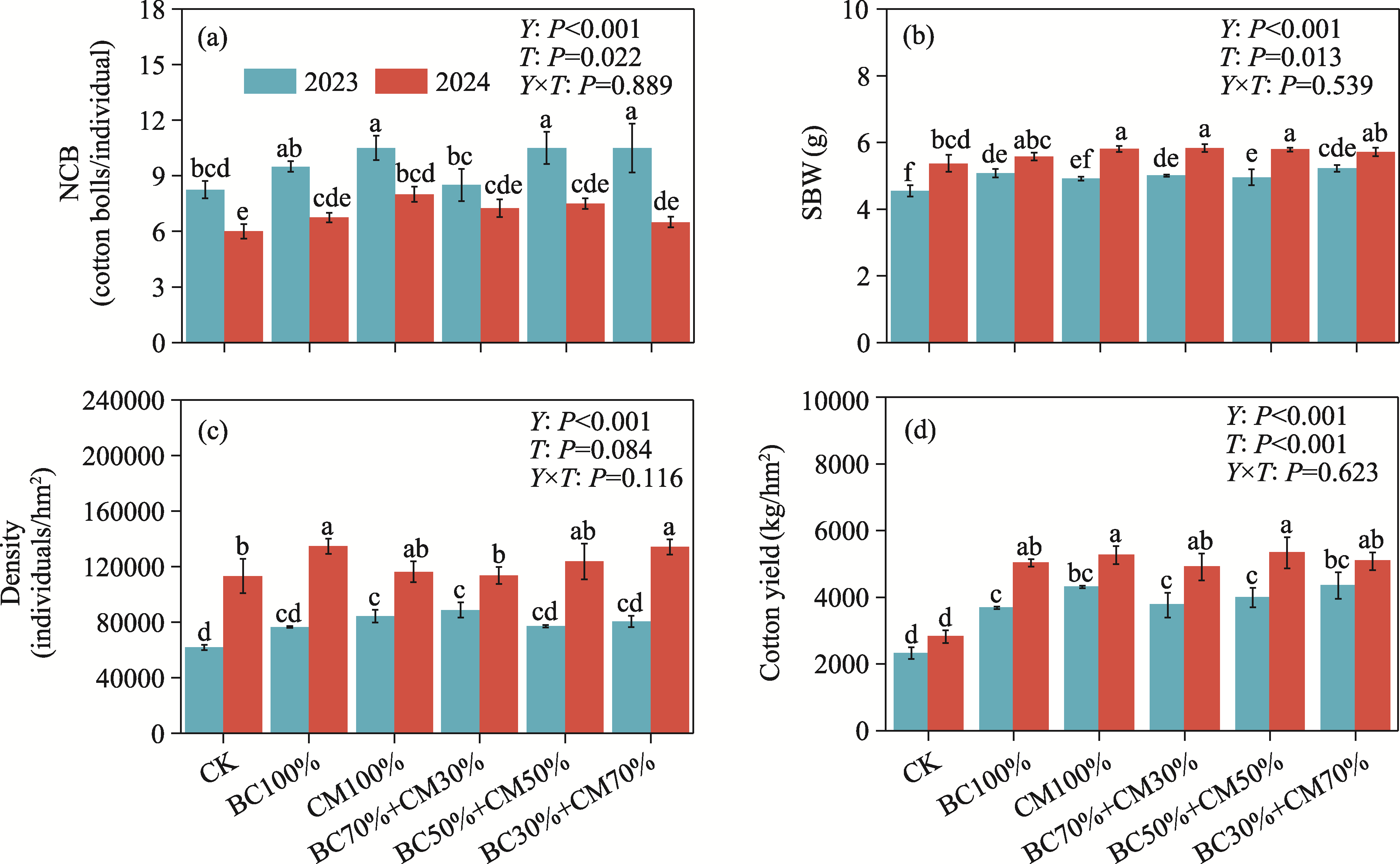

Fig. 2 Variations in yield components and cotton yield under different treatments of biochar combined with cow manure in 2023 and 2024. (a), number of cotton bolls (NCB); (b), single boll weight (SBW); (c), density; (d), cotton yield. Bars are standard errors. Different lowercase letters represent significant differences in yield components and cotton yield among treatments and between years at P<0.050 level.

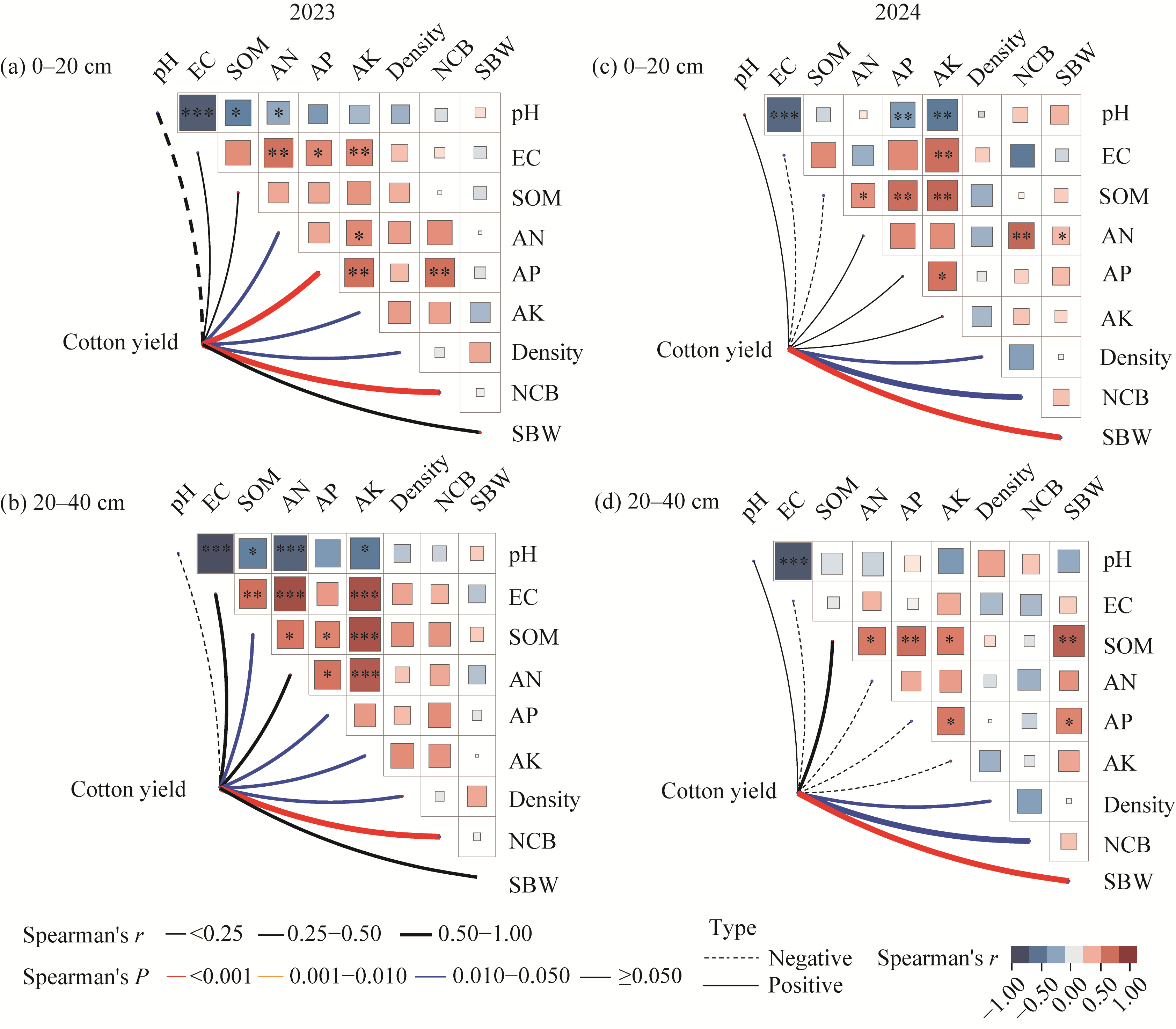

Fig. 3 Spearman correlations of cotton yield with soil pH, electrical conductivity (EC), SOM, AN, AP, AK, density, NCB, and SBW at 0-20 and 20-40 cm soil depths in 2023 (a and b) and 2024 (c and d). The sizes of squares represent absolute values of Spearman correlations among these variables, whereas the blue and red colors in the squares represent negative and positive correlations, respectively. *, **, and *** in the squares indicate that the Spearman correlations are significant at P<0.050, P<0.010, and P<0.001 levels, respectively.

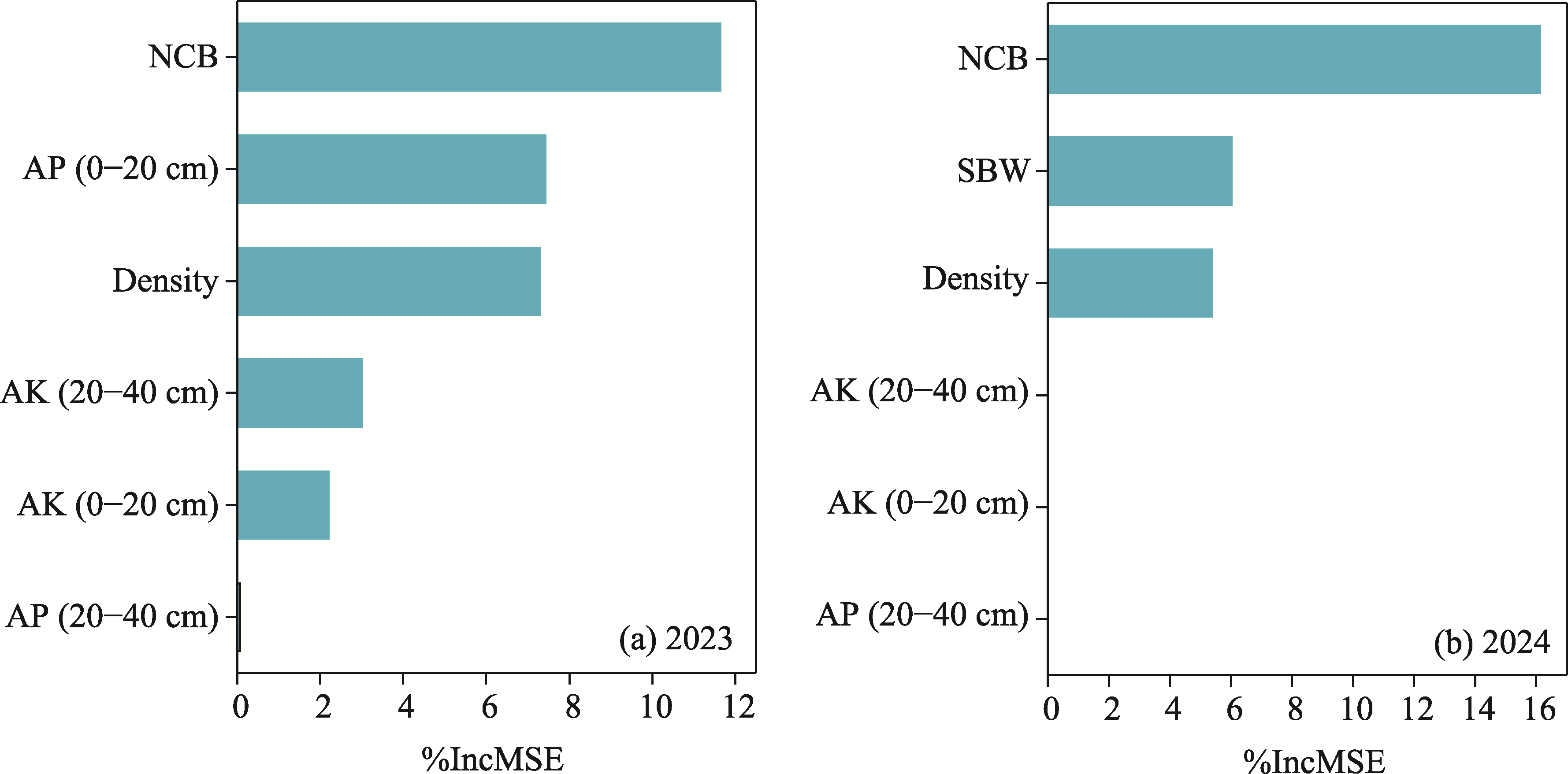

Fig. 4 Relative importances of NCB, density, SBW, AP, and AK at 0-20 and 20-40 cm depths in regulating cotton yield in 2023 (a) and 2024 (b). %IncMSE represents the increase in the mean square error and indicates the importance of an explained variable when its true value is replaced by random data.


[1]	Ali S, Rizwan M, Qayyum M F, et al. 2017. Biochar soil amendment on alleviation of drought and salt stress in plants: A critical review. Environmental Science and Pollution Research, 24(14): 12700-12712.

[2]	Baath G S, Shukla M K, Bosland P W, et al. 2020. Water use and yield responses of Chile pepper cultivars irrigated with brackish groundwater and reverse osmosis concentrate. Horticulturae, 6(2): 27, doi: 10.3390/horticulturae6020027.

[3]	Bai X X, Huang Y W, Ren W, et al. 2019. Responses of soil carbon sequestration to climate-smart agriculture practices: A meta-analysis. Global Change Biology, 25(8): 2591-2606. doi: 10.1111/gcb.14658 pmid: 31002465

[4]	Bao S D. 2000. Soil Agrochemical Analysis. Beijing: China Agriculture Press, 40-120. (in Chinese)

[5]	Bednarz C W, Bridges D C, Brown S M. 2000. Analysis of cotton yield stability across population densities. Agronomy Journal, 92(1): 128-135.

[6]	Biederman L A, Harpole W S. 2013. Biochar and its effects on plant productivity and nutrient cycling: a meta-analysis. Global Change Biology Bioenergy, 5(2): 202-214.

[7]	Cabot C, Sibole J V, Barceló J, et al. 2014. Lessons from crop plants struggling with salinity. Plant Science, 226(S1): 2-13.

[8]	Chan K Y, Zwietn L V, Meszaros I, et al. 2008. Using poultry litter biochars as soil amendments. Soil Research, 46(5): 437-444.

[9]	Coyle G G, Smith C W. 1997. Combining ability for within-boll yield components in cotton, Gossypium hirsutum L. Crop Science, 37(4): 1118-1122.

[10]	Eden M, Gerke H H, Houot S. 2017. Organic waste recycling in agriculture and related effects on soil water retention and plant available water: a review. Agronomy for Sustainable Development, 37(2): 11, doi: 10.1007/s13593-017-0419-9.

[11]	Eswar D, Karuppusamy R, Chellamuthu S. 2021. Drivers of soil salinity and their correlation with climate change. Current Opinion in Environmental Sustainability, 50(S1): 310-318.

[12]	Fageria N K, Gheyi H R, Moreira A. 2011. Nutrient bioavailability in salt affected soils. Journal of Plant Nutrition, 34(7): 945-962.

[13]	FAO(Food and Agriculture Organization of the United Nations). 2022. Top 10 countries production of cotton seed. [2025-02-13]. http://www.fao.org.

[14]	Farrar M B, Wallace H M, Cheng Y X, et al. 2021. Biochar co-applied with organic amendments increased soil-plant potassium and root biomass but not crop yield. Journal of Soils and Sediments, 21(2): 784-798.

[15]	Fouladidorhani M, Shayannejad M, Shariatmadari H, et al. 2020. Biochar, manure, and super absorbent increased wheat yields and salt redistribution in a saline-sodic soil. Agronomy Journal, 112(6): 5193-5205. doi: 10.1002/agj2.20365

[16]	Gao S, DeLuca T H, Cleveland C C. 2019. Biochar additions alter phosphorus and nitrogen availability in agricultural ecosystems: A meta-analysis. Science of the Total Environment, 654: 463-472. doi: 10.1016/j.scitotenv.2018.11.124

[17]	Garbowski T, Bar-Michalczyk D, Charazinska S, et al. 2023. An overview of natural soil amendments in agriculture. Soil and Tillage Research, 225: 105462, doi: 10.1016/j.still.2022.105462.

[18]	Genesio L, Miglietta F, Lugato E, et al. 2012. Surface albedo following biochar application in durum wheat. Environmental Research Letters, 7(1): 014025, doi: 10.1088/1748-9326/7/1/014025.

[19]	Hu W, Zhang Y P, Rong X M, et al. 2024. Biochar and organic fertilizer applications enhance soil functional microbial abundance and agroecosystem multifunctionality. Biochar, 6(1): 3, doi: 10.1007/s42773-023-00296-w.

[20]	Iqbal B, Khan I, Anwar S, et al. 2024. Biochar and saline soil: Mitigation strategy by incapacitating the ecological threats to agricultural land. International Journal of Phytoremediation, 26(8): 1269-1279.

[21]	Jans Y, Bloh W V, Schaphoff S, et al. 2021. Global cotton production under climate change-Implications for yield and water consumption. Hydrology and Earth System Sciences, 25(4): 2027-2044.

[22]	Jiang Y J, Zheng D M, Lu S Q, et al. 2004. Composition features and content of organic matter in cropped soil of Xinjiang. Soils, 36(1): 43-45, 60. (in Chinese)

[23]	Khadem A, Raiesi F, Besharati H, et al. 2021. The effects of biochar on soil nutrients status, microbial activity and carbon sequestration potential in two calcareous soils. Biochar, 3(1): 105-116.

[24]	Lashari M S, Ye Y X, Ji H S, et al. 2014. Biochar-manure compost in conjunction with pyroligneous solution alleviated salt stress and improved leaf bioactivity of maize in a saline soil from central China: A 2-year field experiment. Journal of the Science of Food and Agriculture, 95(6): 1321-1327.

[25]	Lebrun M, Zahid Z, Bednik M, et al. 2024. Combined biochar and manure addition to an agricultural soil benefits fertility, microbial activity, and mitigates manure-induced CO₂ emissions. Soil Use and Management, 40(1): e12997, doi: 10.1111/sum.12997.

[26]	Li H B, Liu Y T, Wang W G, et al. 2021. Assessing the impact of meteorological factors on streamflow in Aksu River. Journal of Irrigation and Drainage, 40(1): 115-122. (in Chinese)

[27]	Li Y J, Zhao W L, Zhu H J, et al. 2024a. Green manure mediated improvement in saline soils in China: A meta-analysis. Agronomy, 14(9): 2068, doi: 10.1007/s42773-023-00296-w.

[28]	Li Z T, Hu J, Chen Y Q, et al. 2024b. Agronomic threshold of soil available phosphorus and the appropriate rate of phosphate fertilizer for drip-irrigated cotton fields in Xinjiang based on a 5-year field experiment. Journal of Plant Nutrition and Fertilizers, 30(11): 2063-2071. (in Chinese)

[29]	Liu G H, Mai W X, Tian C Y. 2023. Effects of organic fertilizer application on the improvement of saline soils: A meta-analysis. Journal of Agricultural Resources and Environment, 40(1): 86-96. (in Chinese)

[30]	Liu M, Linna C, Ma S M, et al. 2022. Biochar combined with organic and inorganic fertilizers promoted the rapeseed nutrient uptake and improved the purple soil quality. Frontiers in Nutrition, 9: 997151, doi: 10.3389/fnut.2022.997151.

[31]	Liu S B, Razavi B S, Su X, et al. 2017. Spatio-temporal patterns of enzyme activities after manure application reflect mechanisms of niche differentiation between plants and microorganisms. Soil Biology and Biochemistry, 112: 100-109.

[32]	Liu S B, Wang J Y, Pu S Y, et al. 2020. Impact of manure on soil biochemical properties: A global synthesis. Science of the Total Environment, 745: 141003, doi: 10.1016/j.scitotenv.2020.141003.

[33]	Luo C Y, Yang J J, Chen W, et al. 2020. Effect of biochar on soil properties on the Loess Plateau: Results from field experiments. Geoderma, 369: 114323, doi: 10.1016/j.geoderma.2020.114323.

[34]	Luo T B, Ren W, Xie C H. 2001. Necessity and feasibility of biotic improving the saline and alkaline land in Xinjiang. Arid Zone Research, 18(1): 46-48. (in Chinese)

[35]	Lv Z W, Sun H R, Zhang J P, et al. 2024. Study on soil available potassium rich-lack index and recommended potassium application rate of cotton soil in three cotton planting regions of China. Soil and Fertilizer Sciences in China, 30(4): 119-127. (in Chinese)

[36]	Ma W D, Chen Y H, Wang F, et al. 2022. Study on the supply of nitrogen, phosphorus and potassium nutrients of arable land in Xinjiang. Xinjiang Agricultural Sciences, 59(6): 1401-1408. (in Chinese) doi: 10.6048/j.issn.1001-4330.2022.06.011

[37]	Meki K, Liu Q, Wu S, et al. 2022. Plant- and microbe-assisted biochar amendment technology for petroleum hydrocarbon remediation in saline-sodic soils: A review. Pedosphere, 32(1): 211-221.

[38]	Munns R. 2002. Comparative physiology of salt and water stress. Plant, Cell and Environment, 25(2): 239-250.

[39]	Munns R, James R A, Lauchli A. 2006. Approaches to increasing the salt tolerance of wheat and other cereals. Journal of Experimental Botany, 57(5): 1025-1043. doi: 10.1093/jxb/erj100 pmid: 16510517

[40]	National Bureau of Statistics. 2023a. Cotton sowing area. [2025-02-13]. https://www.stats.gov.cn/. (in Chinese)

[41]	National Bureau of Statistics. 2023b. Cotton yield per unit area. [2025-02-13]. https://www.stats.gov.cn/. (in Chinese)

[42]	Palansooriya K N, Ok Y S, Awad Y M, et al. 2019. Impacts of biochar application on upland agriculture: A review. Journal of Environmental Management, 234: 52-64. doi: S0301-4797(18)31509-3 pmid: 30616189

[43]	R Development Core Team. 2012. R: A language and environment for statistical computing. [2025-02-17]. https://www.r-project.org.

[44]	Satir O, Berberoglu S. 2016. Crop yield prediction under soil salinity using satellite derived vegetation indices. Field Crops Research, 192: 134-143.

[45]	Schmidt H P, Kammann C, Hagemann N, et al. 2021. Biochar in agriculture-A systematic review of 26 global meta-analyses. Global Change Biology Bioenergy, 13(11): 1708-1730.

[46]	Shakoor A, Shakoor S, Rehman A, et al. 2021. Effect of animal manure, crop type, climate zone, and soil attributes on greenhouse gas emissions from agricultural soils—A global meta-analysis. Journal of Cleaner Production, 278: 124019, doi: 10.1016/j.jclepro.2020.124019.

[47]	Sharif I, Aleem S, Farooq J, et al. 2019. Salinity stress in cotton: Effects, mechanism of tolerance and its management strategies. Physiology and Molecular Biology of Plants, 25(4): 807-820. doi: 10.1007/s12298-019-00676-2 pmid: 31402811

[48]	Sparks D L, Singh B, Siebecker M G. 2024. Environmental Soil Chemistry (3^rd ed). San Diego: Academic Press, 411-432.

[49]	Su Z J, Liu X Z, Wang Z J, et al. 2024. Biochar effects on salt-affected soil properties and plant productivity: A global meta-analysis. Journal of Environmental Management, 366: 121653, doi: 10.1016/j.jenvman.2024.121653.

[50]	Tian X F, Li C L, Zhang M, et al. 2018. Biochar derived from corn straw affected availability and distribution of soil nutrients and cotton yield. PLoS ONE, 13(1): e0189924, doi: 10.1371/journal.pone.0189924.

[51]	Wang X, Ding J L, Han L J, et al. 2024. Biochar addition reduces salinity in salt-affected soils with no impact on soil pH: A meta-analysis. Geoderma, 443: 116845, doi: 10.1016/j.geoderma.2024.116845.

[52]	Wang Z C, Li C D, Zhang Y J, et al. 2011. Effects of different densities on main population quality of cotton. Cotton Science, 23(3): 284-288. (in Chinese)

[53]	Wei L L, Chen S, Cui J Y, et al. 2022. A meta-analysis of arable soil phosphorus pools response to manure application as influenced by manure types, soil properties, and climate. Journal of Environmental Management, 313: 115006, doi: 10.1016/j.jenvman.2022.115006.

[54]	Weng Z, Van Zwieten L, Singh B P, et al. 2017. Biochar built soil carbon over a decade by stabilizing rhizodeposits. Nature Climate Change, 7(5): 371-376. doi: 10.1038/NCLIMATE3276

[55]	Wu Y F, Wang X D, Zhang L, et al. 2023. The critical role of biochar to mitigate the adverse impacts of drought and salinity stress in plants. Frontiers in Plant Science, 14: 1163451, doi: 10.3389/fpls.2023.1163451.

[56]	Zhang D M, Zhang Y J, Sun L, et al. 2023. Mitigating salinity stress and improving cotton productivity with agronomic practices. Agronomy, 13(10): 2486, doi: 10.3390/agronomy13102486.

[57]	Zhang W F, Wang Z L, Yu S L, et al. 2004. Effects of planting density on canopy photosynthesis, canopy structure and yield formation of high-yield cotton in Xinjiang, China. Acta Phytoecologica Sinica, 28(2): 164-171. (in Chinese)

[58]	Zhang Y J, Ding J Q, Wang H, et al. 2020. Biochar addition alleviate the negative effects of drought and salinity stress on soybean productivity and water use efficiency. BMC Plant Biology, 20(1): 288, doi: 10.1186/s12870-020-02493-2.

[59]	Zhou Y P, Tian H Y, Du H Y, et al. 2017. Influence of different planting densities on growth, boll setting, yield and quality of cotton. Crops, 33(4): 84-88. (in Chinese)

[60]	Zong Y T, Liu Y J, Li Y Q, et al. 2023. Changes in salinity, aggregates and physicomechanical quality induced by biochar application to coastal soil. Archives of Agronomy and Soil Science, 69(13): 2721-2738.
