Journal of Arid Land  2025, Vol. 17 Issue (7): 997-1013    DOI: 10.1007/s40333-025-0022-x     CSTR: 32276.14.JAL.0250022x
Research article
Effects of climate change and human activities on grassland productivity: A case study of the Qinghai Lake Basin, China
ZHANG Jinlong1,2, MA Xiaofang1, QI Yuan1, YANG Rui1, LI Long3, ZHANG Juan1,2, MA Chao1,2, WANG Lu1,2, WANG Hongwei1,*()
1State Key Laboratory of Cryospheric Science and Frozen Soil Engineering, Key Laboratory of Remote Sensing of Gansu Provincial and Heihe Remote Sensing Experimental Research Station, Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou 730000, China
2University of Chinese Academy of Sciences, Beijing 100049, China
3Qinghai Remote Sensing Center for Natural Resources, Xining 810001, China
Download: HTML     PDF(3730KB)
Export: BibTeX | EndNote (RIS)

Abstract

Grassland is a key component of the ecosystem in the Qinghai Lake Basin, China. Understanding the effects of climate change and human activities on grassland productivity significantly improves ecological conservation and promotes sustainable vegetation growth in this area. Based on the net primary productivity (NPP) products of MOD17A3HGF (a moderate-resolution imaging spectroradiometer (MODIS) product that provides annual NPP at 500 m resolution) and meteorological data, we analyzed the spatial and temporal evolution of grassland NPP and its interaction with climate factors in the Qinghai Lake Basin from 2001 to 2022 via partial correlation and trend analysis methods. We also used the deflecting trend residual method and scenario analysis method to quantitatively assess the relative contributions of climatic factors and human activities to grassland NPP. The results revealed that: (1) during the past 22 a, grassland NPP increased considerably, with a gradient change from the northwest to the southeast of the study area; (2) sunshine duration, precipitation, and temperature positively influenced grassland NPP, with sunshine duration exerting a stronger effect on grassland NPP than precipitation and temperature; and (3) 98.47% of the grassland in the study area was restored, with an average contribution of 65.00% from human activities and 35.00% from climatic alterations. Compared with climate change, human-induced factors had a greater effect on grassland NPP in this area. The results of the study not only provide important scientific support for ecological restoration and sustainable development of the basin but also offer new ideas for research on similar ecologically fragile areas.



Key wordsecological conservation      human-induced factors      net primary productivity      precipitation      temperature
Received: 25 December 2024      Published: 31 July 2025
Corresponding Authors: *WANG Hongwei (E-mail: wanghw@lzb.ac.cn)
Cite this article:

ZHANG Jinlong, MA Xiaofang, QI Yuan, YANG Rui, LI Long, ZHANG Juan, MA Chao, WANG Lu, WANG Hongwei. Effects of climate change and human activities on grassland productivity: A case study of the Qinghai Lake Basin, China. Journal of Arid Land, 2025, 17(7): 997-1013.

URL:

http://jal.xjegi.com/10.1007/s40333-025-0022-x     OR     http://jal.xjegi.com/Y2025/V17/I7/997

Fig. 1 Overview and distribution of grasslands in the Qinghai Lake Basin
Scenario NPPslope SC SH Contribution
1 >0 >0 >0 BCH
2 >0 <0 >0 BH
3 >0 >0 <0 BC
4 <0 <0 <0 DCH
5 <0 >0 <0 DH
6 <0 <0 >0 DC
Table 1 Six scenarios of grassland restoration and degradation

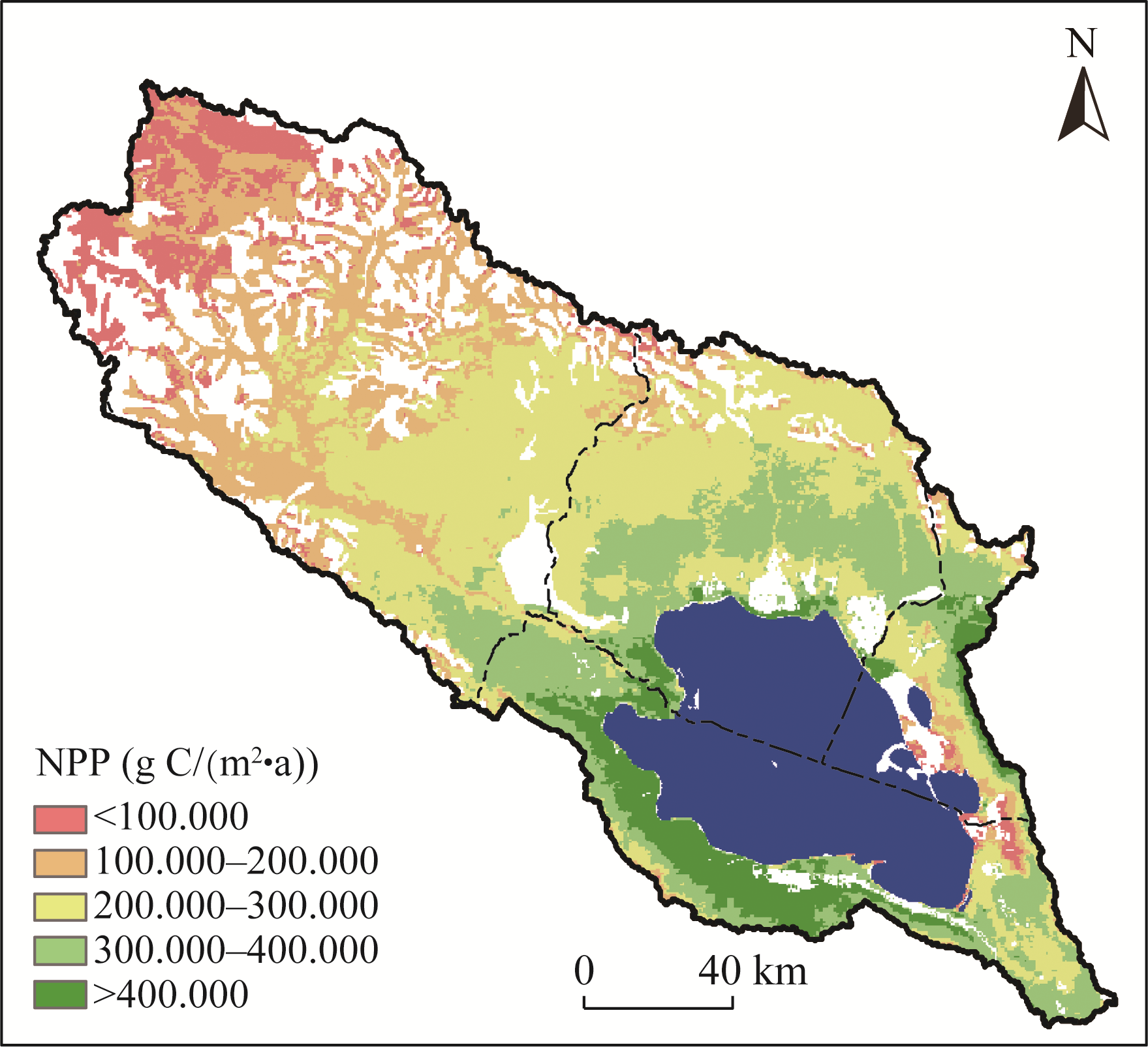

Fig. 2 Spatial pattern of grassland net primary productivity (NPP) in the Qinghai Lake Basin from 2001 to 2022

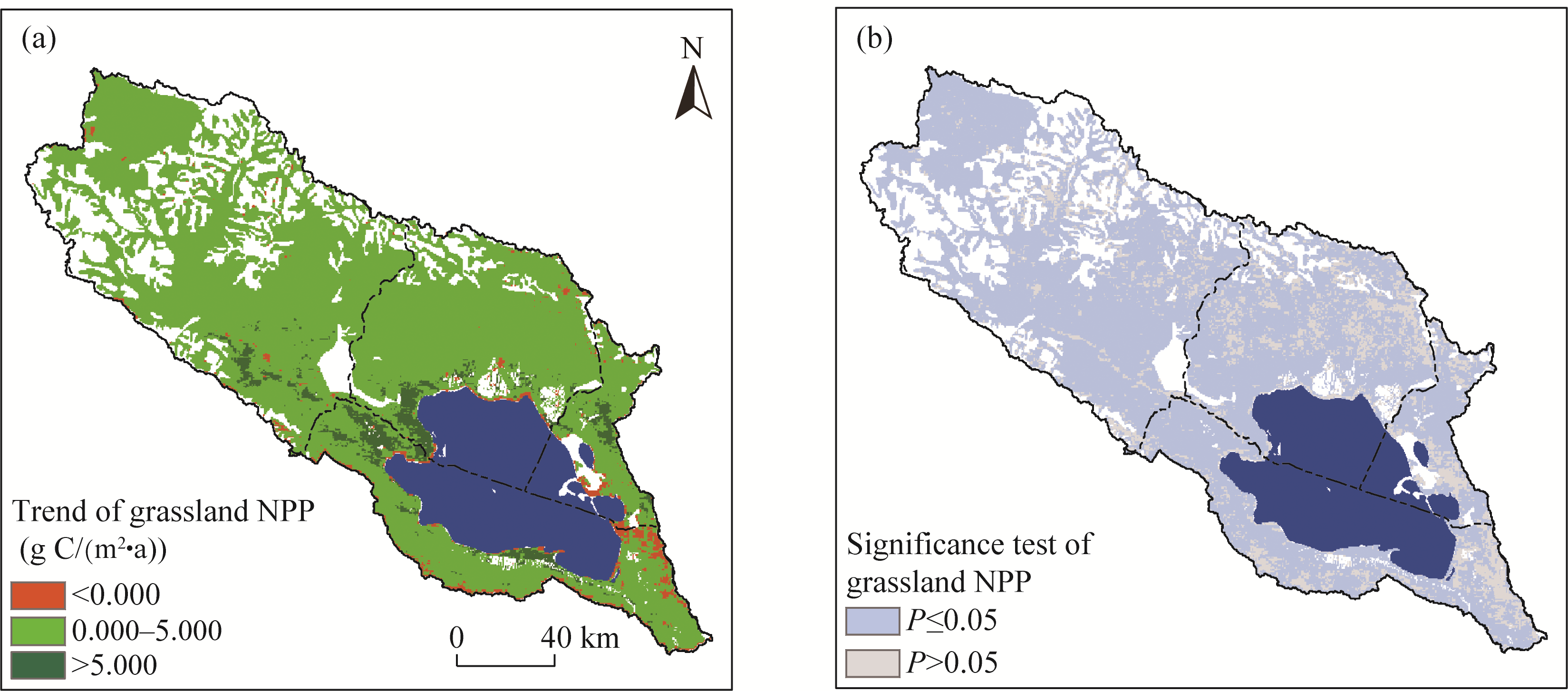

Fig. 3 Spatial variation trend (a) and significance test of grassland NPP (b) in the Qinghai Lake Basin from 2001 to 2022

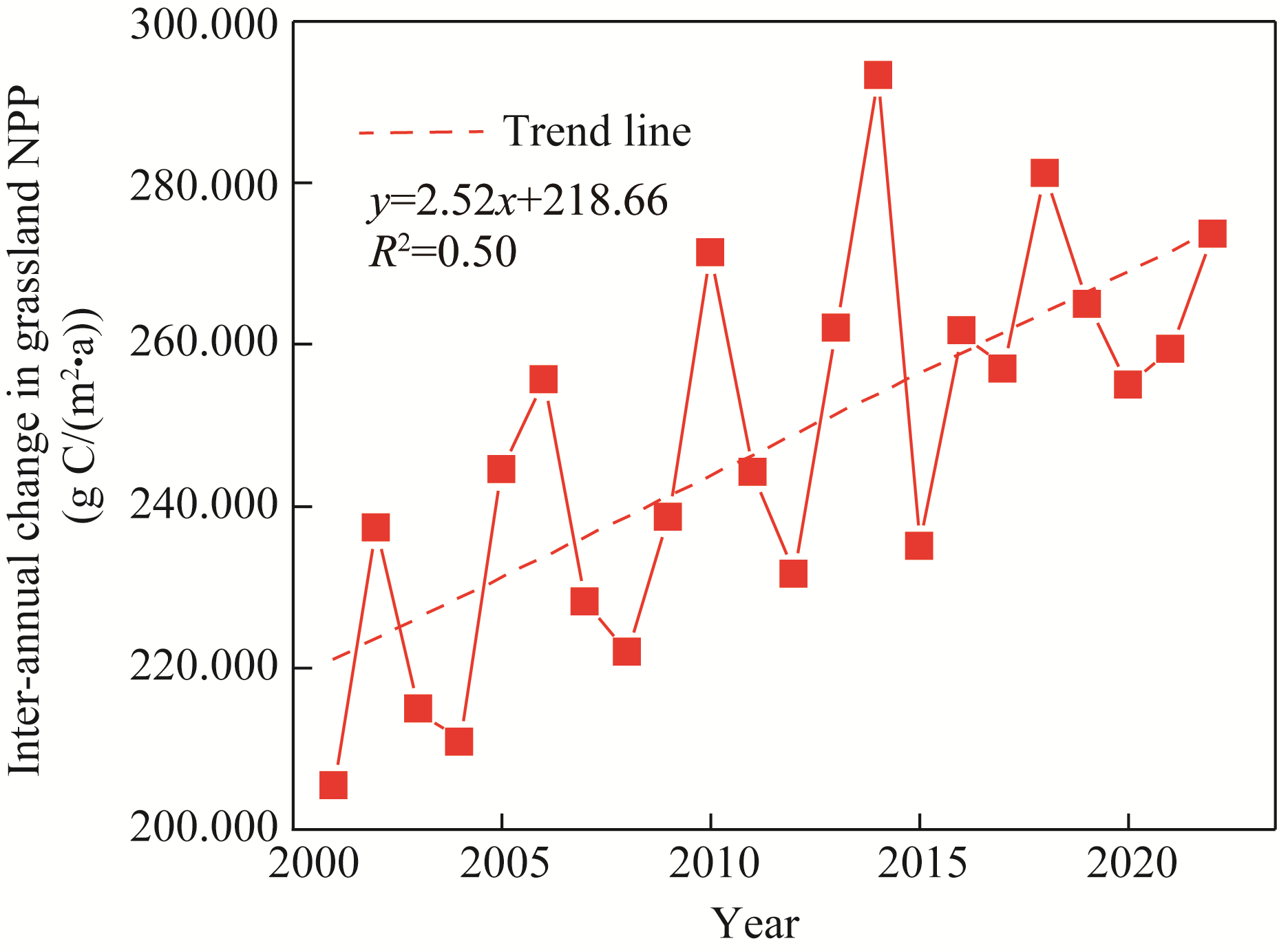

Fig. 4 Inter-annual change in grassland NPP in the Qinghai Lake Basin from 2001 to 2022

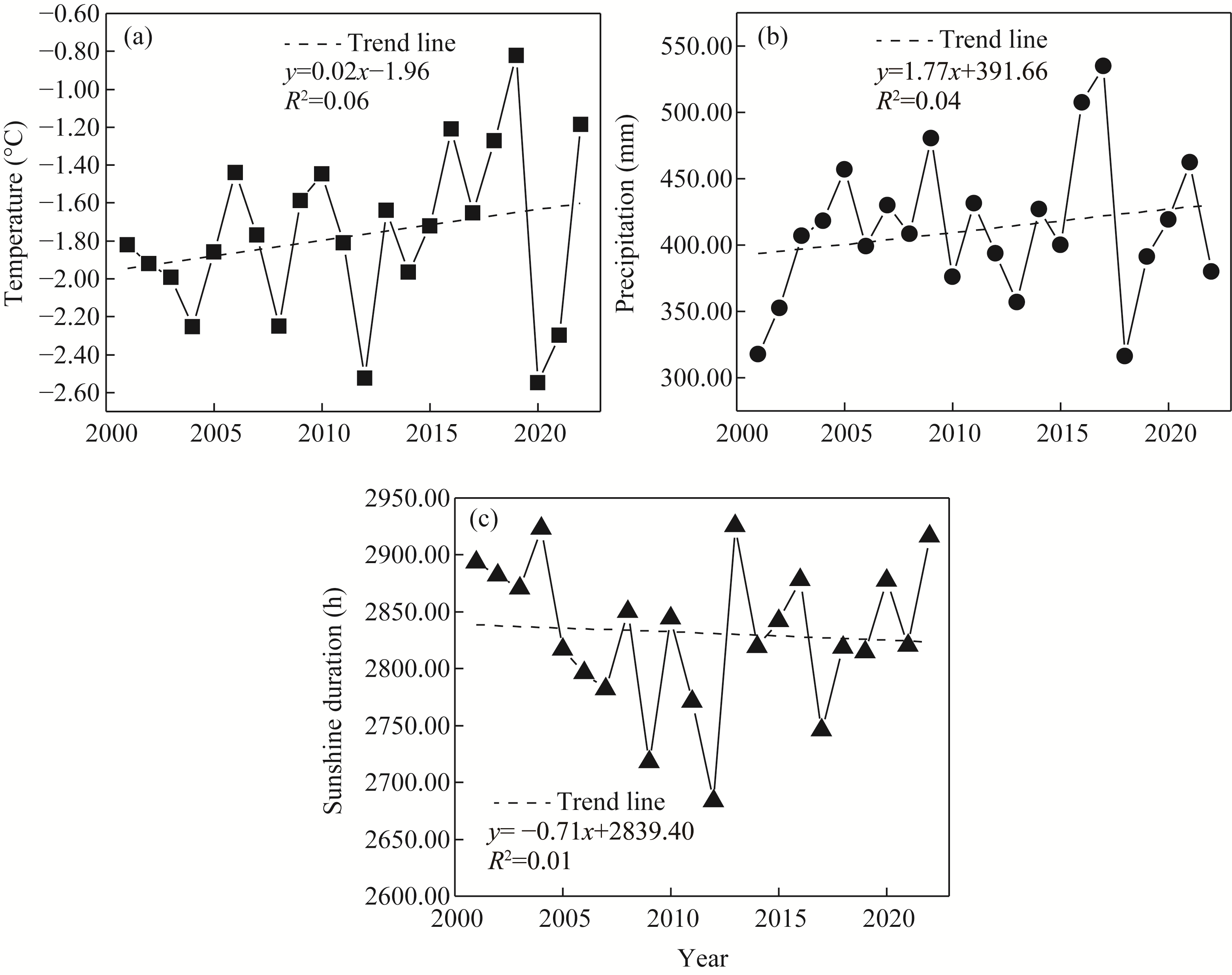

Fig. 5 Inter-annual changes in temperature (a), precipitation (b), and sunshine duration (c) in the Qinghai Lake Basin from 2001 to 2022
Fig. 6 Contributions of temperature (Stem; a), precipitation (Spre; b), and sunshine duration (Sssd; c) to the changes in grassland NPP in the Qinghai Lake Basin

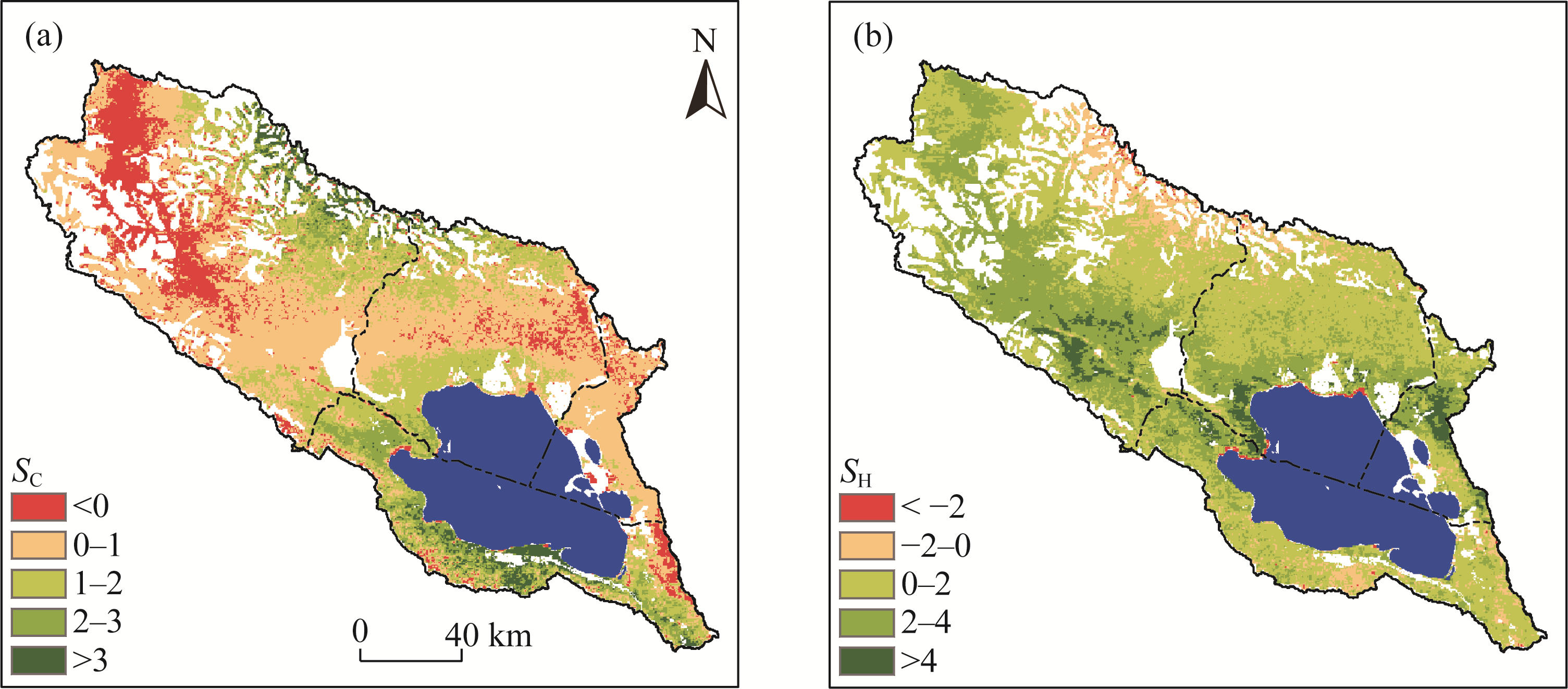

Fig. 7 Contributions of climate change (SC; a) and human activities (SH; b) to the changes in grassland NPP in the Qinghai Lake Basin

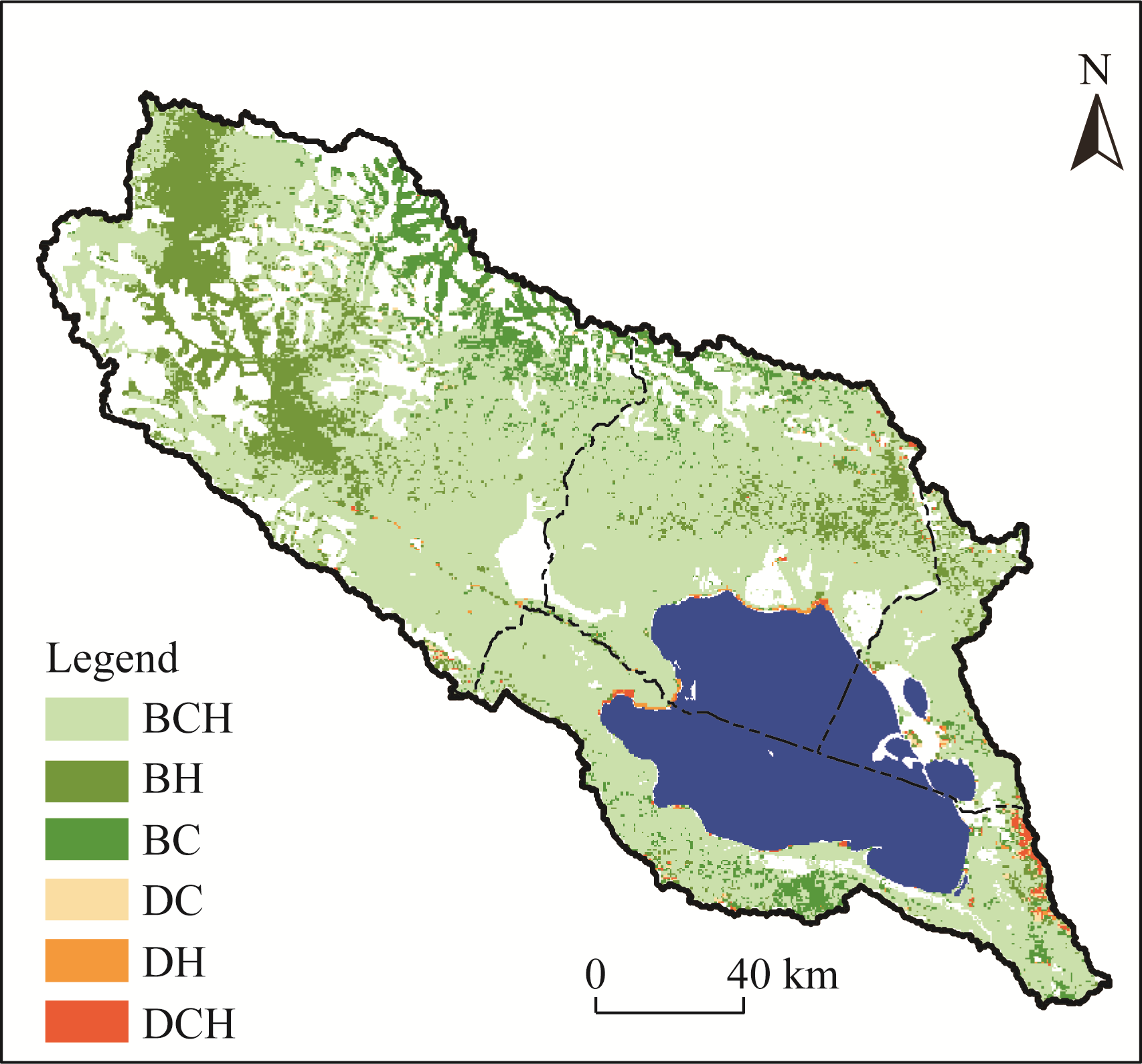

Fig. 8 Grassland restoration and degradation influenced by climate change and human activities in the Qinghai Lake Basin

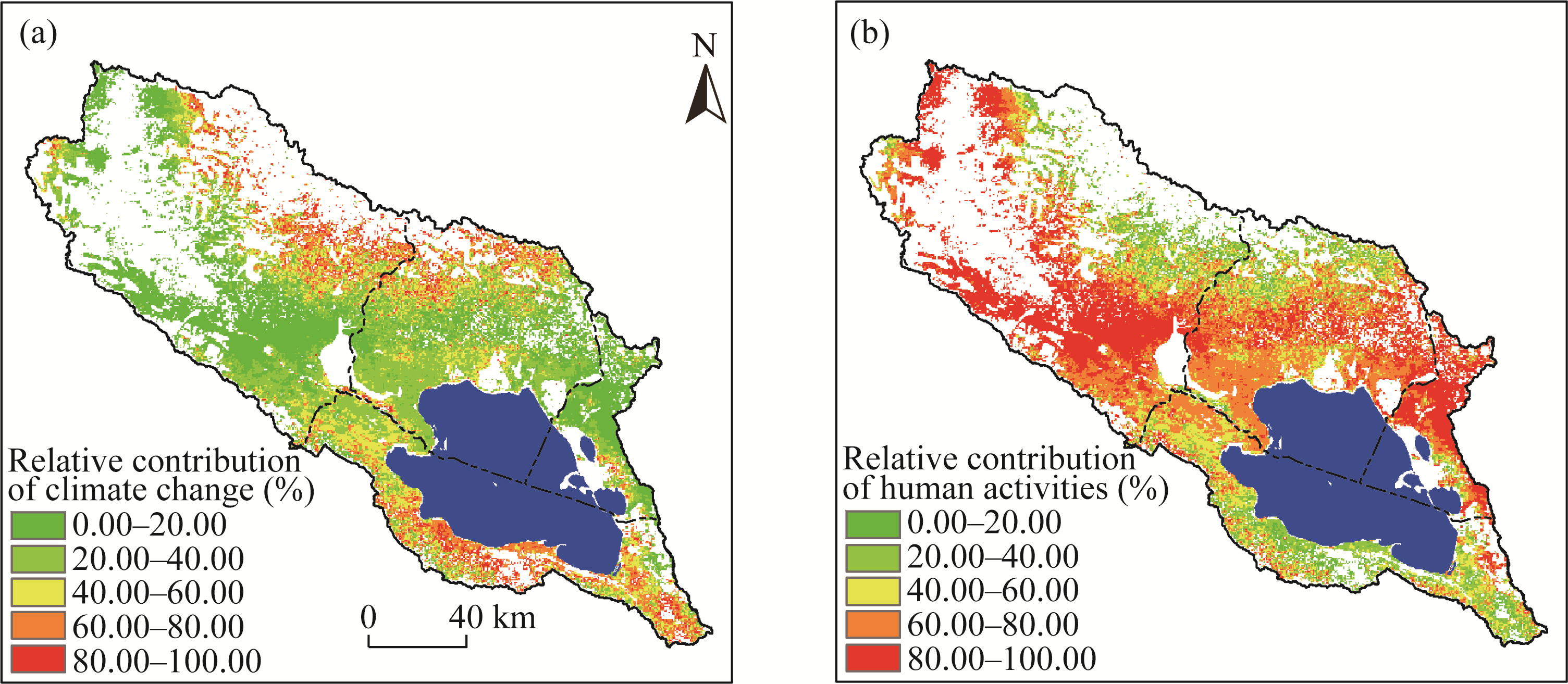

Fig. 9 Relative contribution of climate change (a) and human activities (b) to the restoration of grasslands in the Qinghai Lake Basin
Fig. 10 Correlation between validated and simulated meteorological factors. (a), temperature; (b), precipitation; (c), sunshine duration. RMSE, root mean square error.
Fig. 11 Correlation between simulated grassland NPP of MOD17A3HGF model and validated grassland NPP of Carnegie-Ames-Stanford-Approach (CASA) model. MOD17A3HGF, a moderate-resolution imaging spectroradiometer (MODIS) product that provides annual NPP at 500 m resolution.

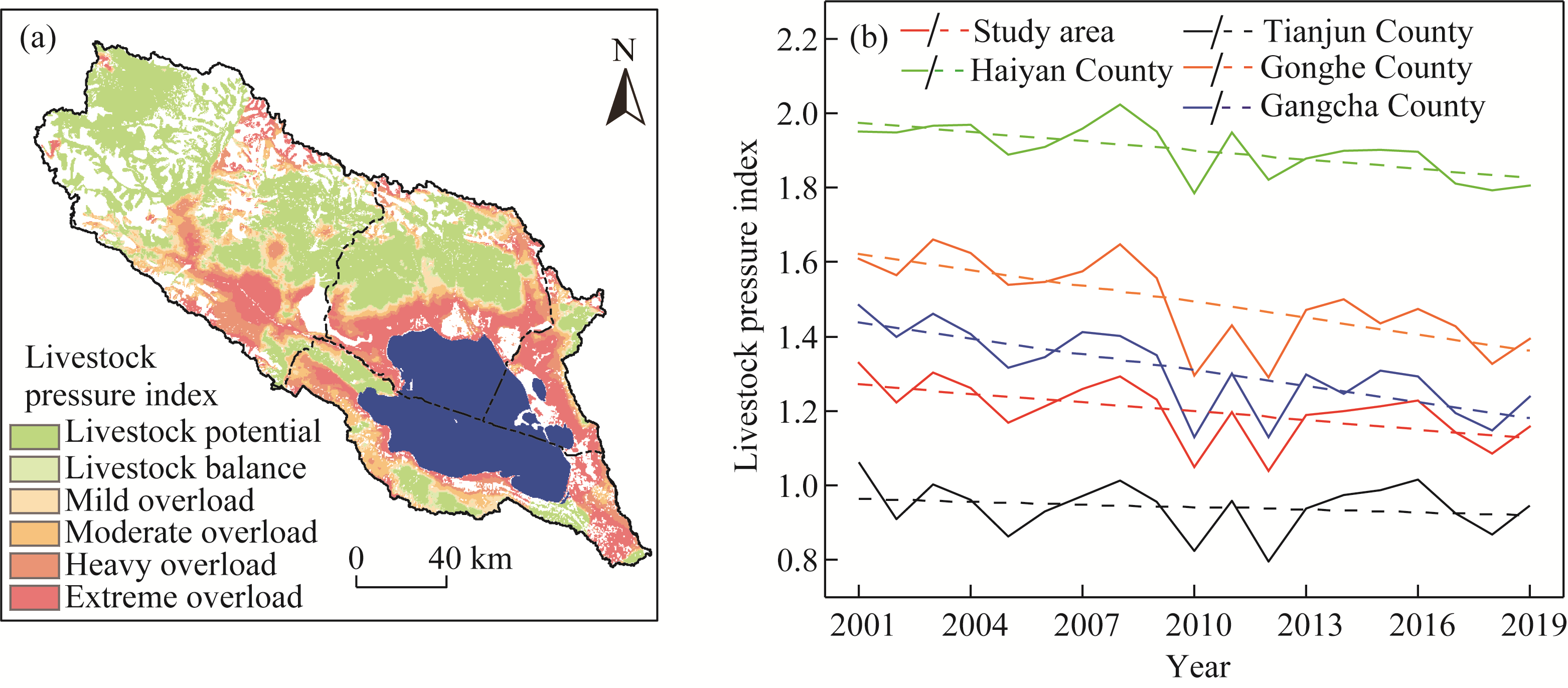

Fig. S1 Spatiotemporal variation of the livestock pressure index in the Qinghai Lake Basin (a) and livestock pressure index in different areas (b) from 2001 to 2019
Implementation township Implementation project Implementation year
Jianghe Town Control of weeds and poisonous plants on degraded grassland 2009, 2010
Control of grasshopper on degraded grassland 2009
Desertification-type degraded grassland control 2010
Control of caterpillar on degraded grassland 2009
Kuaierma Town Control of weeds and poisonous plants on degraded grassland 2009, 2010
Control of grasshopper on degraded grassland 2009
Desertification-based degraded grassland control 2010
"Black soil beach" type degraded grassland control 2010
Shengge Town Desertification-based degraded grassland control 2010
"Black soil beach" type degraded grassland control 2010
Xinyuan Town Control of weeds and poisonous plants on degraded grassland 2009, 2010
Control of caterpillar on degraded grassland 2009
Desertification-based degraded grassland control 2010
Zhihema Town Control of weeds and poisonous plants on degraded grassland 2009
Control of grasshopper on degraded grassland 2009
Desertification-based degraded grassland control 2010
Table S1 Degraded grassland control project in Tianjun County
Fig. S2 Relationship between CO2 concentration and grassland net primary productivity (NPP)
[1]   Bao W K, Zhang Y, Dai L B, et al. 2018. Spatio-temporal change analysis of vegetation coverage based on the liner spectral mixture model in Qinghai Lake Basin. Hubei Agricultural Sciences, 57(20): 44-48. (in Chinese)
[2]   Bardgett R D, Bullock J M, Lavorel S, et al. 2021. Combatting global grassland degradation. Nature Reviews Earth & Environment, 2(10): 720-735.
[3]   Bates D M, Lindstrom M J, Wahba G, et al. 1987. Gcvpack-routines for generalized cross validation. Communications in Statistics-Simulation and Computation, 16(1): 263-297.
[4]   Chen T, Tang G P, Yuan Y, et al. 2020. Unraveling the relative impacts of climate change and human activities on grassland productivity in Central Asia over last three decades. Science of the Total Environment, 743: 140649, doi: 10.1016/j.scitotenv.2020.140649.
[5]   Dai T R, Dai X A, Lu H, et al. 2024. The impact of climate change and human activities on the change in the net primary productivity of vegetation-taking Sichuan Province as an example. Environmental Science and Pollution Research, 31: 7514-7532.
[6]   Ge W Y, Deng L Q, Wang F, et al. 2021. Quantifying the contributions of human activities and climate change to vegetation net primary productivity dynamics in China from 2001 to 2016. Science of the Total Environment, 773: 145648, doi: 10.1016/j.scitotenv.2021.145648.
[7]   Geng Y X, Yi G H, Zhang T B, et al. 2024. Impacts of climate change on grassland carbon sink/source patterns in the Qinghai-Tibet Plateau. Journal of Natural Resources, 39(5): 1208-1221. (in Chinese)
[8]   Guan Q Y, Yang L Q, Guan W Q, et al. 2019. Assessing vegetation response to climatic variations and human activities: Spatiotemporal NDVI variations in the Hexi Corridor and surrounding areas from 2000 to 2010. Theoretical and Applied Climatology, 135: 1179-1193.
[9]   Guo W, Ni X N, Jing D Y, et al. 2014. Spatial-temporal patterns of vegetation dynamics and their relationships to climate variations in Qinghai Lake Basin using MODIS time-series data. Journal of Geographical Sciences, 24(6): 1009-1021.
doi: 10.1007/s11442-014-1134-y
[10]   Hou W Y, Jin J X, Yan T, et al. 2022. A satellite-based dataset of global atmospheric carbon dioxide concentration with a spatial resolution of 2°×2.5° from 1992 to 2020. Journal of Global Change Data & Discover, 6(2): 191-199. (in Chinese)
[11]   Kim J H. 2019. Multicollinearity and misleading statistical results. Korean Journal of Anesthesiology, 72(6): 558-569.
doi: 10.4097/kja.19087 pmid: 31304696
[12]   Lan Y F, Li C H. 2022. Spatiotemporal pattern of vegetation net primary productivity (NPP) and its response to climate change in Qilian Mountains during the past 16 years. Acta Agrestia Sinica, 30(1): 188-195. (in Chinese)
[13]   Li L, Zhang F P, Feng Q, et al. 2019. Responses of grassland to climate change and human activities in the area around Qinghai Lake. Chinese Journal of Ecology, 38(4): 1157-1165. (in Chinese)
[14]   Li T, Hu J, Li L, et al. 2024. Temporal variation and factors influencing the stability of NPP in Chinese shrubland ecosystems. Forests, 15(3): 531, doi: 10.3390/f15030531.
[15]   Li Z J, Chen J P, Chen Z P, et al. 2023. Quantifying the contributions of climate factors and human activities to variations of net primary productivity in China from 2000 to 2020. Frontiers in Earth Science, 11: 1084399, doi: 10.3389/feart.2023.1084399.
[16]   Liu B.2021. Livestock carrying state estimation product in Qinghai-Tibet Plateau (2000-2019). National Tibetan Plateau/Third Pole Environment Data Center. [2024-03-09]. https://doi.org/10.11888/Ecolo.tpdc.271512.
[17]   Liu M. 2022. Soil physicochemical characteristics and grassland productivity under different land utilization types in the semi-arid area of Qilian Mountains. MSc Thesis. Yangling: Northwest A&F University. (in Chinese)
[18]   Liu W B, Sun F B. 2016. Assessing estimates of evaporative demand in climate models using observed pan evaporation over China. Journal of Geophysical Research: Atmospheres, 121(14): 8329-8349.
[19]   Liu Y, Liu H H, Chen Y, et al. 2022. Quantifying the contributions of climate change and human activities to vegetation dynamic in China based on multiple indices. Science of the Total Environment, 838(4): 156553, doi: 10.1016/j.scitotenv.2022.156553.
[20]   Long B Y, Zeng C L, Zhou T, et al. 2024. Quantifying the relative importance of influencing factors on NPP in Hengduan Mountains of the Tibetan Plateau from 2002 to 2021: A Dominance Analysis. Ecological Informatics, 81: 102636, doi: 10.1016/j.ecoinf.2024.102636.
[21]   Mu S J, Zhou S X, Chen Y Z, et al. 2013. Assessing the impact of restoration-induced land conversion and management alter natives on net primary productivity in Inner Mongolian grassland, China. Global and Planetary Change, 108: 29-41.
[22]   Niu B, Zhang X Z. 2021. Grassland actual net primary production, potential net primary production and potential aboveground biomass on the Tibetan Plateau from 2000 to 2017. National Tibetan Plateau/Third Pole Environment Data Center. [2024-06-12]. https://doi.org/10.11888/Ecolo.tpdc.271204.
[23]   O'Mara F P. 2012. The role of grasslands in food security and climate change. Annals of Botany, 110(6): 1263-1270.
doi: 10.1093/aob/mcs209 pmid: 23002270
[24]   Peng S Z.2020. 1-km monthly precipitation dataset for China (1901-2023). National Tibetan Plateau/Third Pole Environment Data Center. [2024-01-09]. https://doi.org/10.5281/zenodo.3114194.
[25]   Qi Y, Lian X H, Wang H W, et al. 2020. Dynamic mechanism between human activities and ecosystem services: A case study of Qinghai lake watershed, China. Ecological Indicators, 117: 106528, doi: 10.1016/j.ecolind.2020.106528.
[26]   Qiao K, Guo W. 2016. Estimating net primary productivity of alpine grassland in Qinghai Lake Basin. Bulletin of Soil and Water Conservation, 36(6): 204-209. (in Chinese)
[27]   Qu S, Wang L C, Lin A W, et al. 2020. Distinguishing the impacts of climate change and anthropogenic factors on vegetation dynamics in the Yangtze River Basin, China. Ecological Indicators, 108: 105724, doi: 10.1016/j.ecolind.2019.105724.
[28]   She Y D, Li X L, Zhang J, et al. 2024. Effects of soil characteristics on grassland productivity in long-term artificial grassland establishment. Global Ecology and Conservation, 54: e03136, doi: 10.1016/j.gecco.2024.e03136.
[29]   Shi S H, Zhu L P, Luo Z H, et al. 2023. Quantitative analysis of the contributions of climatic and anthropogenic factors to the variation in net primary productivity, China. Remote Sensing, 15(3): 789, doi: 10.3390/rs15030789.
[30]   Teng M J, Zeng L X, Hu W J, et al. 2020. The impacts of climate changes and human activities on net primary productivity vary across an ecotone zone in Northwest China. Science of the Total Environment, 714: 136691, doi: 10.1016/j.scitotenv.2020. 136691.
[31]   Tuoku L, Wu Z J, Men B H. 2024. Impacts of climate factors and human activities on NDVI change in China. Ecological Informatics, 81: 102555, doi: 10.1016/j.ecoinf.2024.102555.
[32]   Wang G J, Peng W F, Zhang L D, et al. 2023. Quantifying the impacts of natural and human factors on changes in NPP using an optimal parameters-based geographical detector. Ecological Indicators, 155: 111018, doi: 10.1016/j.ecolind.2023.111018.
[33]   Wang H W, Qi Y, Huang C L, et al. 2019. Analysis of vegetation changes and dominant factors on the Qinghai-Tibet Plateau, China. Sciences in Cold and Arid Regions, 11(2): 150-158.
[34]   Wang H W, Qi Y, Lian X H, et al. 2022a. Effects of climate change and land use/cover change on the volume of the Qinghai Lake in China. Journal of Arid Land, 14(3): 245-261.
[35]   Wang H W, Qi Y, Zhang J, et al. 2022b. Influence of open-pit coal mining on ground surface deformation of permafrost in the Muli Region in the Qinghai-Tibet Plateau, China. Remote Sensing, 14(10): 2352, doi: 10.3390/rs14102352.
[36]   Wang S Q, Ma L, Yang L P, et al. 2024a. Quantifying desertification in the Qinghai Lake Basin. Frontiers in Environmental Science, 12: 1309757, doi: 10.3389/fenvs.2024.1309757.
[37]   Wang X L, Liang T G, Xie H J, et al. 2016. Climate-driven changes in grassland vegetation, snow cover, and lake water of the Qinghai Lake basin. Journal of Applied Remote Sensing, 10(3): 036017, doi: 10.1117/1.jrs.10.036017.
[38]   Wang Y J, Xiao C W, Liu C C, et al. 2024b. The response of grassland productivity to atmospheric nitrogen deposition in northern China. Agriculture, Ecosystems & Environment, 359: 108764, doi: 10.1016/j.agee.2023.108764.
[39]   Wang Z G, Cao S K, Cao G C, et al. 2021. Effects of vegetation phenology on vegetation productivity in the Qinghai Lake Basin of the Northeastern Qinghai-Tibet Plateau. Arabian Journal of Geosciences, 14: 1030, doi: 10.1007/s12517-021-07440-5.
[40]   Wu G L, Ren G H, Wang D, et al. 2013. Above-and below-ground response to soil water change in an alpine wetland ecosystem on the Qinghai-Tibetan Plateau, China. Journal of Hydrology, 476: 120-127.
[41]   Wu X Q, Zhang L L, Gao L M, et al. 2023. Dynamic change and driving force of net primary productivity in Qinghai Lake Basin. Arid Zone Research, 40(11): 1824-1832. (in Chinese)
doi: 10.13866/j.azr.2023.11.12
[42]   Xie C H, Wu S X, Zhuang Q W, et al. 2022. Where anthropogenic activity occurs, anthropogenic activity dominates vegetation net primary productivity change. Remote Sensing, 14(5): 1092, doi: 10.3390/rs14051092.
[43]   Xu H J, Wang X P, Zhang X X. 2016. Alpine grasslands response to climatic factors and anthropogenic activities on the Tibetan Plateau from 2000 to 2012. Ecological Engineering, 92: 251-259.
[44]   Xu H J, Wang X P. 2016. Effects of altered precipitation regions on plant productivity in the arid region of northern China. Ecological Informatics, 31: 137-146.
[45]   Xu M H, Zhang Z K, Wang Y, et al. 2023. Quantifying the contributions of climatic and human factors to vegetation net primary productivity dynamics in East Africa. Frontiers in Forests and Global Change, 6: 1332631, doi: 10.3389/ffgc.2023.1332631.
[46]   Yan M, Xue M, Zhang L, et al. 2021. A decade's change in vegetation productivity and its response to climate change over Northeast China. Plants, 10(5): 821, doi: 10.3390/plants10050821.
[47]   Yan Y C, Liu X P, Wen Y Y, et al. 2019. Quantitative analysis of the contributions of climatic and human factors to grassland productivity in northern China. Ecological Indicators, 103: 542-553.
[48]   Yin L C, Feng X M, Fu B J, et al. 2020. Irrigation water consumption of irrigated cropland and its dominant factor in China from 1982 to 2015. Advances in Water Resources, 143: 103661, doi: 10.1016/j.advwatres.2020.103661.
[49]   Yuan F D, Zhang X, Wei Y Q. 2018. Evaluation of ecological environment vulnerability in the Qinghai-Tibet Plateau ecological barrier zone. Geospatial Information, 16(4): 67-69. (in Chinese)
[50]   Zhang J L, Qi Y, Yang R, et al. 2023. Impacts of climate change and land use/cover change on the net primary productivity of vegetation in the Qinghai Lake Basin. International Journal of Environmental Research and Public Health, 20(3): 2179, doi: 10.3390/ijerph20032179.
[51]   Zhang M, Cui J, Cao X Z. 2017. Spatio-temporal distribution of grassland degradation in Qinghai Lake valley. Journal of Ecology and Rural Environment, 33(5): 426-432. (in Chinese)
[52]   Zhang X R, Cao Q, Ji S P, et al. 2022. Quantifying the contributions of climate change and human activities to vegetation dynamic changes in the Yellow River Delta. Acta Scientiae Circumstantiae, 42(1): 56-69. (in Chinese)
[53]   Zhang Y Z, Wang Q, Wang Z Q, et al. 2020. Impact of human activities and climate change on the grassland dynamics under different regime policies in the Mongolian Plateau. Science of the Total Environment, 698: 134304, doi: 10.1016/j.scitotenv. 2019.134304.
[54]   Zhao W H, Wu J J, Shen Q, et al. 2022. Estimation of the net primary productivity of winter wheat based on the near-infrared radiance of vegetation. Science of the Total Environment, 838: 156090, doi: 10.1016/j.scitotenv.2022.156090.
[55]   Zhao Z Y, Yang Y, Huang Y L, et al. 2024. Simulation of grassland vegetation productivity and its influencing factors. Pratacultural Science, 41(1): 163-177. (in Chinese)
[56]   Zheng H J, Yang X F, Song C Q, et al. 2024. Distinct environmental controls on above- and below-ground net primary productivity in Northern China's grasslands. Ecological Indicators, 167: 112717, doi: 10.1016/j.ecolind.2024.112717.
[57]   Zhou W, Li J L, Yue T X. 2020. Remote Sensing Monitoring and Evaluation of Degraded Grassland in China. Singapore: Springer.
[58]   Zhou W, Wang T, Xiao J Y, et al. 2024. Grassland productivity increase was dominated by climate in Qinghai-Tibet Plateau from 1982 to 2020. Journal of Cleaner Production, 434: 140144, doi: 10.1016/j.jclepro.2023.140144.
